Product Details:
Payment & Shipping Terms:
|
| Test Standard: | ASME B 16.34 | Mesh Screen: | Stainless Steel, Inconel |
|---|---|---|---|
| Application: | Filter | Face To Face: | ASME B 16.34 |
| Filter Size: | Mesh 20-100 | ||
| High Light: | High Pressure Industrial Valves,Y Strainer Industrial Valves,Stainless Steel CF8 Industrial Valves |
||

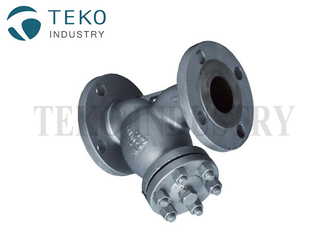

High Pressure Stainless Steel CF8 CF8M Mesh 20 Filter Y Strainer
Description
TEKO Stainless Steel ANSI 150 Cast Steel SY trainer with stainless steel screen mesh. Easy to clean with a removable drain plug and bolted bonnet. All flange dimensions are as ASME B16.5. Generally used to protect Valves and equipment from dirt and scale, which is often the cause of damage, energy loss and higher production costs. Working Temperature up to 400°C. Strainers have a large flow surface area which results in a minimal pressure drop.
Quick Information
| End Connection | Flanged ANSI 150 |
| Body Material | Cast Steel |
| Size | 2" (DN50), 3" (DN80), 4" (DN100), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300) |
| Filtration | 0.38mm (Mesh 40) |
| Design | Y Type |
| Industry / Approvals | Steam |
| Manufacturer | TEKO |

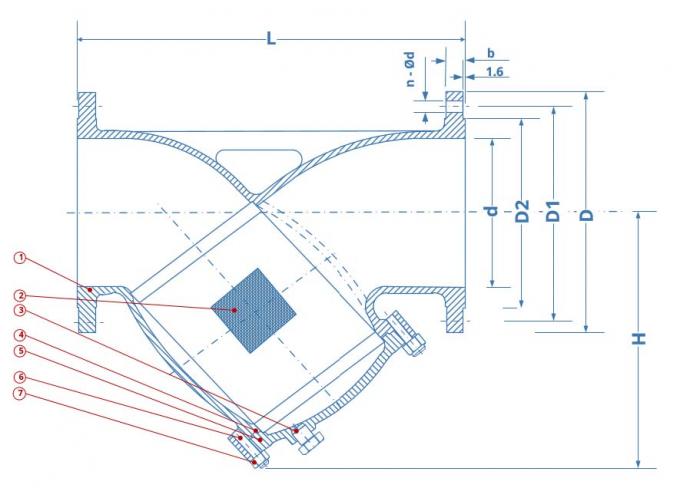

Drawing
| Material Parts | ||
| 1 | Body | ASME A216 WCB |
| 2 | Screen | SS 316 |
| 3 | Drain Pug | ASTM A 105N |
| 4 | Gasket | SS304+graphite |
| 5 | Bonnet | ASTM A216 WCB |
| 6 | Bonnet bolt | ASTM A193 B7 |
| 7 | Bonnet Nut | ASTm A194 2H |
Key Features:
· ANSI Class 150
· Cast Steel Body
· Stainless Steel Screen 40 Mesh
· Drain Plug for easy cleaning
· Sizes 2" - 12"
· Temperature up to 400°C
