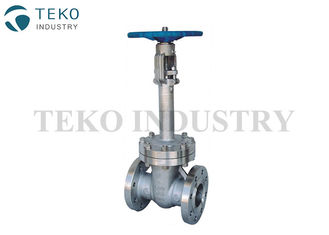

LCC LCB Flange End Industrial Valves Extension Stem For Low Temeprature Service

Large Image : LCC LCB Flange End Industrial Valves Extension Stem For Low Temeprature Service

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	Z41Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Features:	Extension Stem	Body Material:	LCC, LCB
Test Standard:	API 598	Applications:	Low Temperature
Operation:	ON-OFF Electric Actuator	Trim Number:	As Per API 600
High Light:	industrial butterfly valves , industrial ball valves

Low Temeprature LCC LCB Flange Extension Stem Gate Industrial Valve For Cryogenic Service

Cryogenic Gate Valve

Cryogenic valves are specially designed for gas treatment processes and storage and transportation of liquefied gasses such as LNG, liquid nitrogen, Oxygen,. Etc. These valves are required to be operated to give assured leakage rates. These valves which are recommended to use below -50⁰C are designed with a extended bonnet which separates the operator and stem seal from the cold temperature. 12” gas column is a standard feature for these valves. Extended bonnet as per MESC SPE 77/200 & SPE 77/209 can also be offered.

Specifications:

Specification	Details
Design Standard	API 600 / BS 6364
Pressure/Temperature Chart	ASME B16.34
Face to face Dimension	API 598 / BS 6364
Testing Standard	ASME B16.5
Flange Details	ASME B16.5 UP TO 24”
Size Range	2” – 24” (DN50 – DN600)
ASME Class	150 – 1500
Materials	LF2 / LF3 / F316 / F304 / F316L /
Materials	LCB / LCC / CF8M / CF8 / CF3M
Trims	F316 / F304 / F316L
Seats	Metal
Ends	Flange ends,
Ends	Butt-weld End

Markets:
Industrial Gas

Applications:
• Transport
• Storage
• Defence
• Processing

Liquid / Gas Type:
• Oxygen (O2)
• Nitrogen (N2)
• Argon (Ar)
• Carbon Dioxide (CO2)
• Krypton (Kr)
• Neon (Ne)
• Hydrogen (H2)
• Nitrous Oxide (N2O)
• Sulphur Hexafluoride (SF6)
• Natural Gas (CH4)
• Ethylene (C2H4)
• Trifluoromethane (CHF3)
