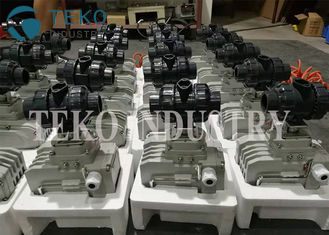

Auxiliary Limit Switch Quarter Turn Electric Actuator WaterProof

Large Image : Auxiliary Limit Switch Quarter Turn Electric Actuator WaterProof

Product Details:

Place of Origin:	China
Brand Name:	TEKO
Certification:	CE
Model Number:	TG-R

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	By maste carton
Delivery Time:	7 days after deposit
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Contact Now

Detailed Product Description

Surface Treatmanet:	Powder Coating	Rotary Angle:	90°,120°, 270°
Water Proof:	IP67, IP68	Torque Range:	70-6000 Nm
Voltage:	Customer Request	Votlage:	AC220/380/110/24 DC24V/48
High Light:	WaterProof Quarter Turn Electric Actuator , Auxiliary Limit Quarter Turn Electric Actuator , Powder Coating waterproof linear actuator

Auxiliary Limit Switch Wide Using Voltage Water Proof Quarter Turn Electric Actuator

TG-R series water proof quarter turn electric actuator are suitable for on-off small ball/plug vavles and damper automation .The innovative product design concepts of TG-R series water proof quarter turn electric actuator in practical applications have gotten multiparty attention and recognition. Choosing TG-R is a professional choice. We will be happy to provide you with quality products and efficient service.

Features

Power: AC85 265V ,AC380V, AC/DC24V Three phase;

AC 220V/110V/AC 24V/DC 24V Single Phase.

Environment temp: -20℃~60℃.

Related humidity: <90%(25℃).

Environment: Without any high corrosion and explosion medium.

Working time: S1 long time standard for both On-off and modulating type.

1. Compact design: Small, light and compact design, high torque and various control option will meet your specific requirement.

2. Fully enclosed squirrel-cage asynchronous motor: The motor of TG-R series water proof quarter turn electric actuator is a specially designed induction motor that produces high starting torques and thermally protected from overheating.

3. Simple manual structure: The manual operation of TG-R series water proof quarter turn electric actuator is designed with spanner. it’s safe, reliable, labor-saving.

Specifications

Shell	Aluminum alloy Shell, Enclosure:IP67,IP68 is optional
Power	Standard:220VAC/1ph Optional:110VAC/1ph, 380V/440V/3ph,50/60Hz, ±10% 24VDC/110VDC/220VDC
Controlling power	110/220VAC/1ph,50/60 Hz, ±10%
Motor	Squirrel-cage asynchronous motor
Limit switch	2×Open/ Close, SPDT,250VAC 10A
Auxiliary limit switch	2×Open/ Close, SPDT,250VAC 10A
Travel	90°±5°
Fail safe/ Operating temperature	Internal-placed thermal protection, Open 120℃ ±5℃/Close 97℃ ± 5℃
Indicator	Continuous Travel indication
Manual operation	Mechanical handle(Handwheel is optional)
Self-locking device	Self-locking by worm and worm gear
Mechanical limit	2 x external adjustable stopper
Conduit entries	M20*1.5
Ambient temperature	-25℃～+60℃(-30℃,-40℃,-60℃ optional)
Lubrication	Grease moly(EP type)
Material	Steel, Aluminum alloy, Aluminum bronze, Polycarbonate
Ambient humidity	Max 90％RH	Non-Condensing
Anti-vibration	X Y Z 10g,0.2～34 Hz,30 minutes
External coating	Epoxy polyester
