ISO 5211 Quarter Turn Heavy Duty Electric Actuator Easy Debugging

Large Image : ISO 5211 Quarter Turn Heavy Duty Electric Actuator Easy Debugging

Product Details:

Place of Origin:	China
Brand Name:	TEKO
Certification:	CE
Model Number:	TG-R

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	By maste carton
Delivery Time:	7 days after deposit
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Contact Now

Detailed Product Description

Surface Treatmanet:	Powder Coating	Rotary Angle:	90°,120°, 270°
EX-Proof:	CT6,CT4	Conneciton Type:	ISO 5211, Star Square
Torque Range:	70-6000 Nm	Voltage:	Customer Request
High Light:	Easy Debugging heavy duty electric actuator , Quarter Turn electric rotary actuator , ISO 5211 heavy duty electric actuator

Heavy Duty Easy Debugging ON-OFF Quarter Turn Small Motorized Actuator For Ball Valve

Description

TG-R series small quarter turn electric actuator is newly designed to operate small size ball valve, butterfly valve, plug/damper valves and automation of rotary machines. The compact design of the small quarter turn electric actuator and the rugged, firm corrosion-resistant housing will be your best choice. TEKO has more than 10 years of experiences in the field of fluid control industry. We expect to cooperate with you in the near future.

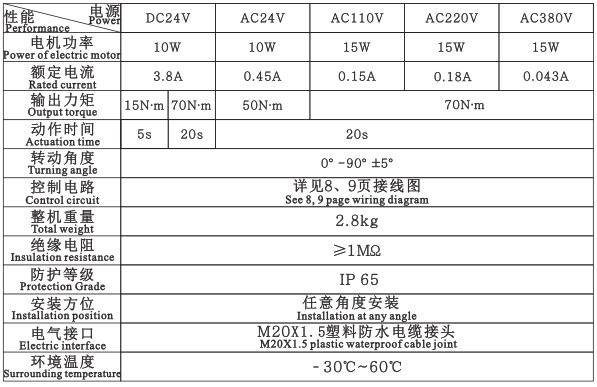

Feature

Torque range:30~5000N.m

Switching time:20~200 S

Ambient temperature:-30℃~+60℃

Control method:On-off / modulating type/ Intelligent type

Weight:2.1 KGS~68 KGS

Protection:IP67, (IP68 optional)

Voltage:AC110~265V , AC / DC 24V Multi voltage input

Single phase: AC220V / AC110V / AC24V / DC24V

Applicable valve : Ball Valve (DN15-DN200); Butterfly Valve (DN25-DN400)

Material of Actuator Body: Aluminium Alloy

1. Compact design:Small, light and compact design, high torque and various control option will meet your specific requirement.

2. Firm corrosion-resistant housing: The shell is made of aluminum alloy, with anodic oxidation treatment and polyester powder coating. It is strong corrosion-resistant and enclosure IP67,NEMA 4 and 6, IP68 is optional.

3. Wide torque range:The torque of TG-R small quarter turn electric actuator is form 30Nm-5000Nm.

4. Circuit:Controlling circuit meets the single-phase or three-phase power supply standard, circuit layout is reasonable and compact, terminals meet various of additional functional requirements effectively.
