Handwheel Operated ASME PN25 PFA Lined Gate Valve

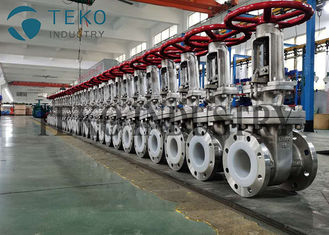

Large Image : Handwheel Operated ASME PN25 PFA Lined Gate Valve

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q41FA

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200 tons per year

Contact Now

Detailed Product Description

Operation:	Handwheel, Bevel Gear	End Connection:	ANSI, DIN Flanged
Presssure:	PN10/16, 150Lb	Liner Material:	PO,PP, PTFE, PFA
Structure:	Gate	Test Standard:	API 598
High Light:	PN25 Lined Gate Valve , ASME Gate Valve , Handwheel PTFE Lined Valves

Handwheel Operated High Corrosion Resistant Chemical Applications PFA Lined Gate Valve

Product description

Technical Specification
Design and Manufacture: ASME B16.34
End-to-end dimension: ASME/ANSI 16.10
Flange Standard: ASME/ANSI 16.5
Inspection and testing: API 598

Product Specification
Body Material: A216/WCB, A351/CF8, A351/CF8M, A351/CF3, A351/CF3M, LCB, A536
Wedge Disc: A351/CF8, A351/CF8M, A351/CF3, A351/CF3M
Stem Material: SS304, SS410, SS416, SS420
Lining Material: PFA, FEP, PTFE, PO
Nominal Diameter: NPS 1-16
Pressure Range: 150lb 300lb JIS DIN
Connection Type: Flange connection
Operation Method: Hand wheel, Bevel Gear etc.

Valve type:	Lined Valve
Type of Industry:	Valve Manufacturers
Valve material:	Polypro Carbon Steel Stainless Steel PTFE
Rating	PN16 PN10 150Lb PN25
Standard	ASME, DIN, JIS, API,GB etc
