PFA Lined Spring Loaded Poppet Check Valve For Non - Return Function

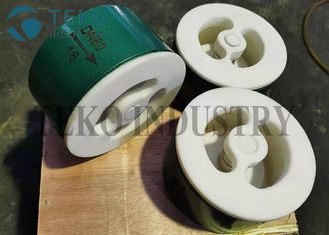

Large Image : PFA Lined Spring Loaded Poppet Check Valve For Non - Return Function

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	H71F46

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200 tons per year

Contact Now

Detailed Product Description

End Connection:	Wafer	Installaiton:	Horizontal Or Verticval
Applications:	Aggressive Or Toxic Liquid	Liner:	PTFE, FEP, PFA
Structure:	Poppet Type	Design Standard:	GB 12236
High Light:	PFA Lined Poppet Check Valve , GB 12236 Poppet Check Valve

PFA Lined Spring Loaded Poppet Check Valve For Non-return function

Basic Info

Type	Wafer Poppet Check Valve
Diameter	DN25~400MM
Lining	PFA/FEP
Nominal Diameter	DN25~300MM
Connecting Format	Butt Clamp
Working Temperature	Normal Temperature
Applicable Medium	Corrosive Medium, Oil, Steam, Water
Flow Direction	Unidirectional
Type	Direct Connection
Driving Mode	Spring Loaded
Application	Non-return, clear water hammer
Material	Carbon Steel
Sealing Form	PTFE Seat
Structural Style	Lift

Features

Guided spring and poppet - secure from misalignment
Crush resistant design guards against installation abuse
Ideal design for low pressure duties
Full bore design provides maximum flow with minimum pressure drop
Stainless Steel spring as standard, poppet lift pressure 14 mbar, other materials under request
Designed for easy disassembly

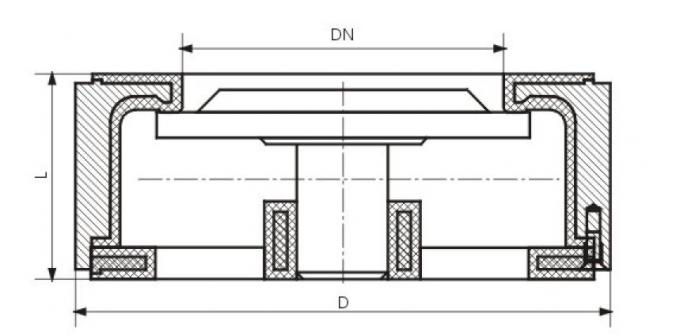

Technical Specification
