Product Details:
Payment & Shipping Terms:
|
| Operation: | Manual, Electric | Body: | Center Lined |
|---|---|---|---|
| Rating: | PN10 | Liner Thickness: | As Standard |
| Structure: | Butterfly | Desing: | MSS SP-67 |
| High Light: | PN10 PTFE Butterfly Valve,Center Lined PTFE Butterfly Valve |
||

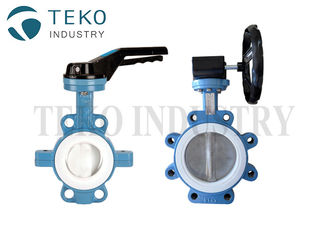

Cast Iron Body Two Pieces Design PTFE Butterfly Valve For Corrosive Liquid
GENERAL CHARACTERISTICS
– Two-piece body.
– Tightness in both ways.
– Center-lined disc
– One-piece stem and butterfly.
CONSTRUCTION MATERIALS
– Body cast steel / stainless steel.
– Stainless steel disc PFA/PTFE lined.
– PTFE sleeve with rubber backup pad.
COATING
– Painting: oven backed epoxy powder coating, 150 μ.
WORKING CONDITIONS
– 10 bar maxi working pressure
– Maximum working temperature with EPDM elastomer back: 150°C (with silicon elastomer back up: 180°C ).
HYDRAULIC TESTS
– In accordance with NF EN 12266-1 and NF EN 12266-2.
CONNECTION
– Between flanges ISO PN 10/16 for DN 50 – 150 ISO PN 10 for DN 200 – 300.
HANDLING POSSIBILITIES
– Handle (DN 50 – 150).
– Gear box with position indicator.
– Single or double acting pneumatic actuator.
– Electric actuators 24, 48, 230/400 V single or 3 phases, 50 or 60 Hz.
MAIN PARTS
| NO. | Parts Name | Material | |||
| Cast Iron | WCB | CF8 | CF8M | ||
| 1 | Body | HT250 | WCB | CF8 | CF8M |
| 2 | Disc | WCB | 35# | CF8 | CF8M |
| 3 | Shaft | 1Cr13 | 2Cr13 | 1Cr18Ni9Ti | 1Cr18Ni12Mo2Ti |
| 4 | Liner | PTFE, PCTFE, FEP, PFA, PO | |||
| 5 | O ring | FPM | |||
| 6 | Handle | ZI101 | |||
