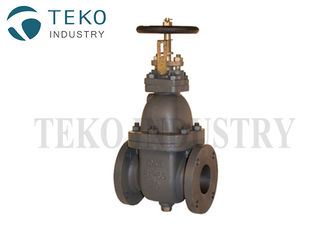

F 7363 Cast Iron Bronze Trim JIS Marine Valve For Seawater Platform Construction

Large Image : F 7363 Cast Iron Bronze Trim JIS Marine Valve For Seawater Platform Construction

Product Details:

Place of Origin:	Made In China
Brand Name:	TEKO
Certification:	CCS
Model Number:	JIS F7363

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	By wooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Material:	Cast Iron	Standard No.:	JIS F7363
Pressure:	JIS 5K	Type:	Gate
Trim:	BC6, Stainless Steel	Application:	Seawater, Fuel Oil
Certificate:	ABS, CCS, BV
High Light:	marine globe valve , marine check valve

JIS F 7363 Cast Iron Bronze Trim Sea Water Gate Fuel Valve For Ship Equipment

Product Name	jis f7363 5k cast iron marine gate valves
Material	Cast Iron body and Stainless steel trim
Color	orignal colour or painted in grey or upon customer's request
JIS Number	JIS Standard F7363
Test standard	JIS F7400-1996
Flange standard	JIS B2220 5k
Design standard	JIS F7425-1996
Application	use for marine pipelines of fresh water, air or gas, fuel oil, lube oil, steam at 205℃ in ship building or repair or marine platform construction.

Material List

1 - Body - Cast Iron - FC20
2 - Seat - Bronze - BC6
3 - Disc - Bronze - BC6
4 - Stem - Brass - C3771BD

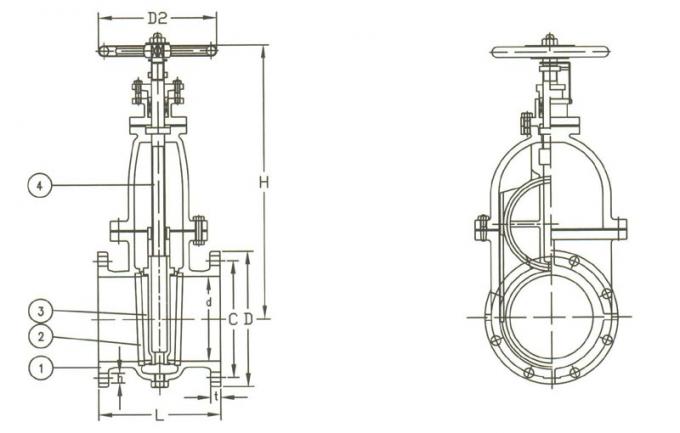

Drawing

F 7363 Cast Iron Bronze Trim JIS Marine Valve For Seawater Platform Construction 0

Model No.	Flange diam.	Flange Pitch	Flange Hole	Weight	TEKO ID
	L(mm)	D(mm)	C(mm)	n*d(mm)	W(kgs)
F7363 5K50	180	130	105	4×Ф15	13.5
F7363 5K65	190	155	130	4×Ф15	19
F7363 5K80	200	180	145	4×Ф19	24.2
F7363 5K100	230	200	165	8×Ф19	35.3
F7363 5K125	250	235	200	8×Ф19	48.1
F7363 5K150	270	265	230	8×Ф19	65.3
F7363 5K200	290	320	280	8×Ф23	103
F7363 5K250	330	385	345	12×Ф23	164
F7363 5K300	370	430	390	12×Ф23	236
F7363 5K350	410	480	435	12×Ф25	307
F7363 5K400	470	540	495	16×Ф25	405
F7363 5K450	500	605	555	16×Ф25	556
F7363 5K500	550	655	605	20×Ф25	700
F7363 5K550	600	720	665	20×Ф27	878
F7363 5K600	660	770	715	20×Ф27	1120
