Cast Iron Butterfly JIS Marine Valve Double Flange Lock

Large Image : Cast Iron Butterfly JIS Marine Valve Double Flange Lock

Product Details:

Place of Origin:	China
Brand Name:	TEKO
Certification:	DNV
Model Number:	DIN 122F

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	By wooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Material:	Cast Iron	Standard No.:	DIN 122F
Seat:	NBR,EPDM	Type:	Butterfly
Application:	Marine	Operation:	Lock Lever
High Light:	Cast Iron JIS Marine Valve , Butterfly JIS Marine Valve , Double Flange Lock JIS Marine Valve

DIN JIS Cast Iron DIN-122F Double Flange Lock Lever Soft Seated Butterfly Valve

Marine quality butterfly valve with a bonded NBR liner suitable for many duties including oils and hydrocarbons. Supplied bare shaft, please specify if lever, gearbox or actuator is required.

Type	Multi-Flange Wafer
Size & Connections	DN40 to DN1200 • Wafer – Between BS4504 PN6/10/16/25, ANSI150 & JIS 5K Flanges
Duty	Air • Inert Gas • Oil • Seawater • Water
Pressure Rating	50-200mm PN16 • 250-1200mm PN10
Temperature	0°C to 80°C
Compliance & Approvals	CCS Type Approval

Material List

Part Nr.	Material	Code
Body	Ductile Iron/Cast Steel	FCD/SC49
Seat	Rubber	NBR/EPDM
Disc	SUS/Bronze	SUS304/BC6
Stem	SUS	SUS403

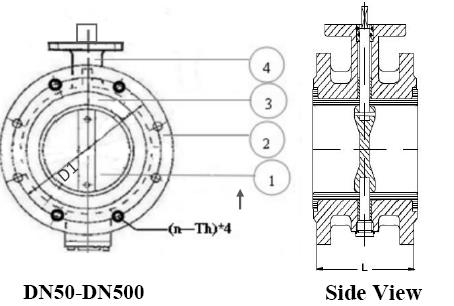

Dimensions

Cast Iron Butterfly JIS Marine Valve Double Flange Lock 0

DN	L	PN6			PN10
DN	L	D1	n-TH	n-d	D1	n-TH	n-d
50	40	110	4XM12	-	125	4XM16	-
65	40	130	4XM12	-	145	4XM16	-
80	60	150	4XM16	-	160	4XM16	4Xφ19
100	60	170	4XM16	-	180	4XM16	4Xφ19
125	100	200	4XM16	4Xφ19	210	4XM16	4Xφ19
150	100	225	4XM16	4Xφ19	240	4XM20	4Xφ23
200	100	280	4XM20	4Xφ19	295	4XM20	4Xφ23
250	110	335	4XM20	8Xφ19	350	4XM20	8Xφ23
300	110	395	4XM20	8Xφ23	400	4XM20	8Xφ25
350	120	445	4XM20	8Xφ23	460	4XM20	12Xφ25
400	130	495	4XM20	12Xφ23	515	4XM24	12Xφ28
450	150	550	4XM20	12Xφ23	565	4XM24	16XM28
500	160	600	4XM20	16Xφ23	620	4XM24	16XM28
