Low Pressure Cast Iron Bronze Trim Sea Water Gate Valve For Shipbuilding JIS F 7364

Large Image : Low Pressure Cast Iron Bronze Trim Sea Water Gate Valve For Shipbuilding JIS F 7364

Product Details:

Place of Origin:	Made In China
Brand Name:	TEKO
Certification:	CCS
Model Number:	JIS F7364

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	By wooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Material:	Cast Iron	Standard No.:	JIS F7364
Pressure:	JIS 10K	Type:	Gate
Bonnet:	Non-rising Stem	Trim:	BC6
High Light:	marine globe valve , jis globe valve

JIS F 7364 Low Pressure Cast Iron Bronze Trim Sea Water Gate Valve For Korean Customer

Quick Info

Product Name	JIS F 7364 Low Pressure Cast Iron Bronze Trim Sea Water Gate Valve For Korean Customer
Medium	Air,gas,oil & pulastion water
Brand name	TEKO or Customer's requirment
Norminal Pressure	10kg/cm²(0.98Mpa)
Connection	Flanged
Used	shipbuilding, ship repairing, stock

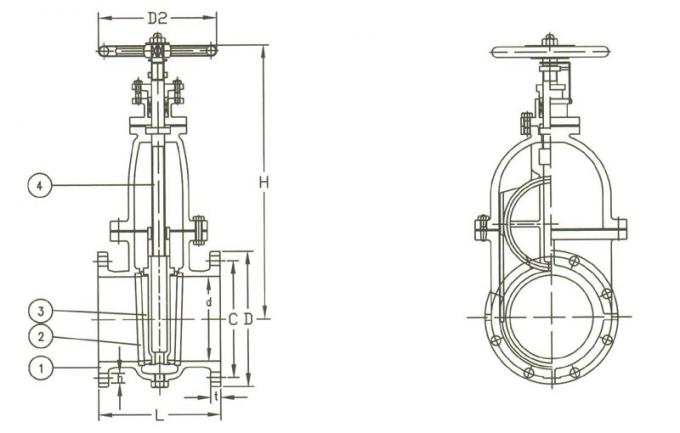

Drawing

Low Pressure Cast Iron Bronze Trim Sea Water Gate Valve For Shipbuilding JIS F 7364 0

MODEL No.	Face to face	Flange diam.	Flange Pitch	Flange Hole	Weight
	L(mm)	D(mm)	C(mm)	n*d(mm)	W(kgs)
F7364 10K50	200	155	120	4×Ф19	19.4
F7364 10K65	220	175	140	4×Ф19	27.6
F7364 10K80	230	185	150	8×Ф19	33
F7364 10K100	250	210	175	8×Ф19	45.8
F7364 10K125	270	250	210	8×Ф23	65.9
F7364 10K150	290	280	240	8×Ф23	86
F7364 10K200	320	330	290	12×Ф23	136
F7364 10K250	380	400	355	12×Ф25	230
F7364 10K300	440	445	400	16×Ф25	331
F7364 10K350	500	490	445	16×Ф25	433
F7364 10K400	590	560	510	16×Ф27	597
F7364 10K450	640	620	565	20×Ф27	704
F7364 10K500	710	675	620	20×Ф27	901
F7364 10K550	780	745	680	20×Ф33	1192
F7364 10K600	850	795	730	24×Ф33	1490
