ABS Certified 10K JIS Marine Valve , Ductile Iron Bronze Trim Non - Rising Stem Globe Valve F7307

Large Image : ABS Certified 10K JIS Marine Valve , Ductile Iron Bronze Trim Non - Rising Stem Globe Valve F7307

Product Details:

Place of Origin:	Made In China
Brand Name:	TEKO
Certification:	CCS
Model Number:	JIS F7407

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	By wooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Material:	Ductile Iron	Standard No.:	JIS F7409
Pressure Rating:	JIS 16K	Bonnet:	Non Rising Stem
End Connection:	Flange	Application:	Sea Water
High Light:	marine check valve , jis globe valve

ABS Certified JIS 10K Ductile Iron Bronze Trim Non-rising Stem Globe Valve F7307

Product Description

* Grade:marine valves

* Size:DN50-DN400

* Standard:JIS7305

* Certification:ISO9001.CCS

Business Scope

*Type: Marine Globe Valve, Marine Stop Check Valve, Marine SDNR Valve, Angle type Marine Vale, Marine Gate Valve, Bronze Marine Valves etc

* Material: Cast Iron, Ductile Iron, Cast Steel, Bronze

* Pressure Rating: JIS 5K, JIS 10K, JIS 16K, JIS 20K, JIS 30K

* Size Range: DN50~DN600

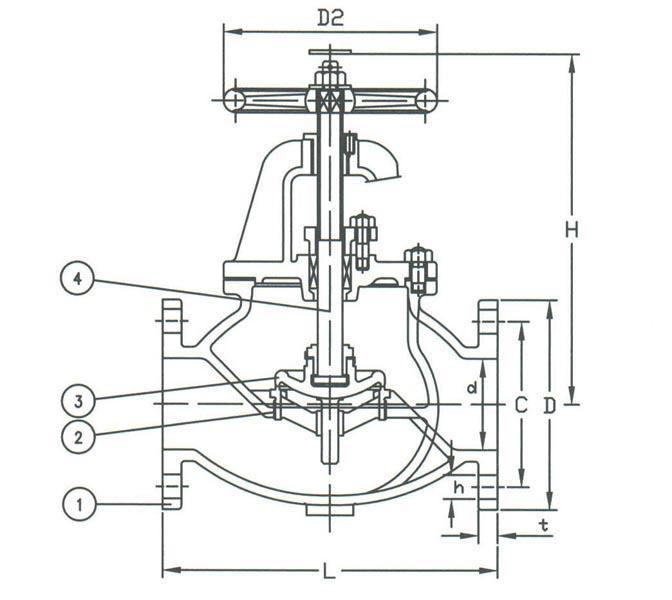

Drawing & Dimensions

ABS Certified 10K JIS Marine Valve , Ductile Iron Bronze Trim Non - Rising Stem Globe Valve F7307 0

Item NO.	Size	L (mm)	D (mm)	C (mm)	Number of Holes	h
F7307-050	50	220	155	120	4	19
F7307-065	65	270	175	140	4	19
F7307-080	80	300	185	150	8	19
F7307-100	100	350	210	175	8	19
F7307-125	125	420	250	210	8	23
F7307-150	150	490	280	240	8	23
F7307-200	200	570	330	290	12	23
F7307-250	250	740	400	355	12	25
F7307-300	300	840	445	400	16	25
