Product Details:
Payment & Shipping Terms:
|
| Body Material: | Cast Steel | Trim Number: | As Per API600 |
|---|---|---|---|
| Bonnet Seal: | Bolted Bonnet Or Pressure Seal | Design: | API 600, ASME B16.34 |
| Disc Type: | Wedge, Parallel | Operation: | Handwheel, Bevel Gear, Electric |
| High Light: | electric actuated gate valve,wcb gate valve |
||

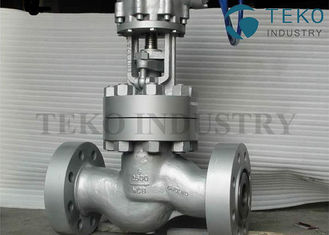

API600 Cast Carbon Steel Shut Off Gate Valve Flanged End Class 150Lb-2500Lb

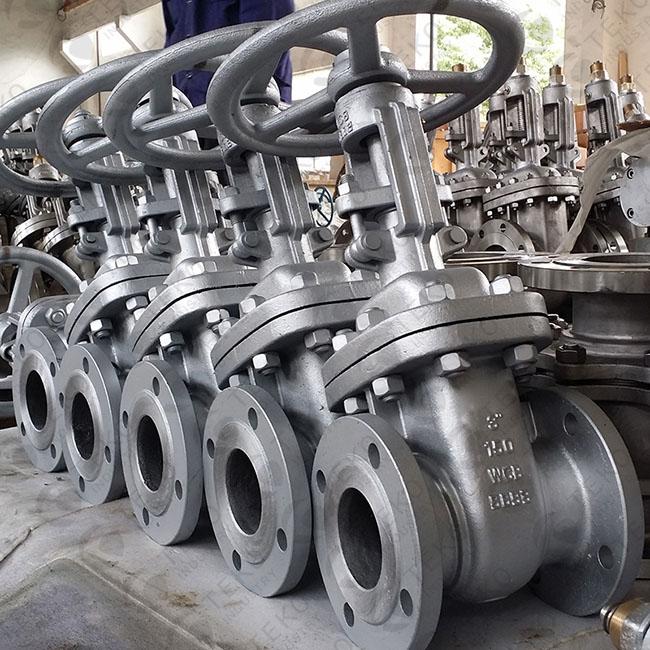

Cast Steel Gate Valves
TEKO Gate Valves are the most commonly used as shutoff Valves in the industries, available with different wedge configurations to meet the specific service conditions.
These are also available with gearing or electric motor actuators. Normally gate Valves are hand wheel operated up to 10" for class 150 & 300.
Gear operated 12" & above for class 150 & 300. For class 600 hand wheel operated up to 8" & gear operated 10" & above. Electric, pneumatic actuators are provided on customer demand.
Specifications Chart
| Product | Gate Valves |
| Size Range | 2” to 36” |
| Pressure Class | 150 # to 2500# |
| Material | WCB, LCB,LC1, LC2, LC3, LCC, WC1, WC5, WC6, WC9, WCC, C5, C12, CF8, CF8M, CF3, CF3M, CG8M, CG3M, CN7M, CD4MCu. Alloy 20, Alloy 400, Alloy 625, Alloy 825, Duplex stainless steel, Super duplex stainless steel, Zirconium, Tantalum,SS904L, Hastelloy, Cupro Nickel, Monel, Inconel, Incoloy & Titanium |
| Design / Manufacturing Std | API 600 (ISO 10434), API 603, ASME B 16.34 / API 6D |
| Face to Face | ASME B 16.10/ BSEN 558 PART 1/ API 6D |
| Ends | Flanged / Butt Weld |
| End Connection Std | ASME B 16.5/ ASME B 16.47 Series A & B, ASME B 16.25 / BS 4504 |
| Testing | API 598/ BSEN 12266 Part 1/ BS 6364 / API 607/API 6 FA / API 6D |
| Body/Bonnet Joint | Bolted type and Pressure Seal type |
| Operation | Hand wheel, Gear, Electrical Actuators |
About TEKO
With 8 years of experiences in valve industry, TEKO combines innovative technology and excellent service to provide intelligent solutions. This approach means that our employees are close to customers on all aspects including pre-ordering, purchasing, installation, maintenance and so on. With the theme of customer first, we try our best to satisfy customer’s need and received a good reputation.
