| Features: | Wedge Shape Disc | Body Material: | WCB/CF8/CF8M |
|---|---|---|---|
| End Connection: | Flange, Butt Weld | Size Rating: | NPS 2"-48" |
| Applications: | WOG Etc. | Bonnet Seal: | Bolted Bonnet, Pressure Seal |
| Rating: | 150Lb~1500Lb | ||
| High Light: | electric actuated gate valve,wcb gate valve |
||

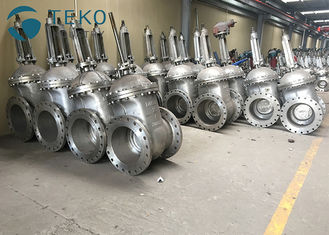

API600 Trim Heavy Duty Metal Seated Wedge Gate Valve With Flange End
What is a Gate Valve ?
A Gate valve is a linear motion on-off or shut-off valve. The gate-valve comprises of a disc or wedge having two seating surfaces that come in contact with the valve seats to form a seal for stopping the flow. The pressure differential between the upstream flow direction and downstream side of wedge causes the wedge or disc to force against the downstream seat creating more effective sealing on the downstream side of the wedge. Gate valve is not used to regulate flow as erosion of disc and seat may cause leakage. A gate valve in partially open or closed position is also susceptible to vibration.
Where quick and frequent operation is essential use of quarter turn valves such as ball valves and plug valves must be considered.
Standards:
Design and Manufacture: ANSIB16.34, API600 API6D, API603,BS1414
Face to face(end to end): ANSIB16.10, API6D
Flanged connection: 2″~24″to ANSIB16.5,
26″~36″to MSS-SP-44 to API605 on Request
Test and inspection: API598,API6D
Butt welded end: ANSIB16.5
Material List
| Class 150- 2500# Flexible Wedge gate valve | |||||
| NO. | Part Name | WCB | LCB | WC6 | WC9 |
| 8 | Bolt and Nut | B7 / 2H | L7 / 4 | B16 / 4 /7 | B16 / 4/7 |
| 7 | Gland and packing | Graphite | Graphite | Graphite | Graphite |
| 6 | Gasket | Soft Iron | Soft Iron | SS304 | SS304 |
| 5 | Thrust Ring | A105 | A182 F304 | A182 F11 | A182 F22 |
| 4 | Back up Ring | A105 A182 | F304 | A182 F11 | A182 F11 |
| 3 | Yoke | WCB | LCB | WC6 | WC9 |
| 2 | Bonnet | WCB | LCB | WC6 | WC9 |
| 1 | Body | WCB | LCB | WC6 | WC9 |
| NO. | Part Name | C5 | C12 | CF8 | CF8M |
| 8 | Bolt and Nut | B7 / 2H | B16 / 4/7 | B8 / 8 | B8M / 8M |
| 7 | Gland and packing | Graphite | Graphite | Graphite | Graphite |
| 6 | Gasket | SS304 | SS304 | SS304 | SS316 |
| 5 | Thrust Ring | A182 F22 | A182 F22 | A182 F304 | A182 F316 |
| 4 | Back up Ring | A182 F22 | A182 F22 | A182 F304 | A182 F316 |
| 3 | Yoke | C5 | C12 | CF8 | CF8M |
| 2 | Bonnet | C5 | C12 | CF8 | CF8M |
| 1 | Body | C5 | C12 | CF8 | CF8M |
