High Performance Industrial Butterfly Valves API609 Double Seated Fire Safe

Large Image : High Performance Industrial Butterfly Valves API609 Double Seated Fire Safe

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D72W

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	40 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Seat Material:	O-ring + SS	Installation:	Any Direction
Feature:	API607 Fire Safe	Size Rating:	2" To 60"
Body Material:	WCB, Stainless Steel	Stem Material:	17-4PH
High Light:	industrial butterfly valves , industrial ball valves

API609 Double Seated Fire Safe High Performance Industrial Valves

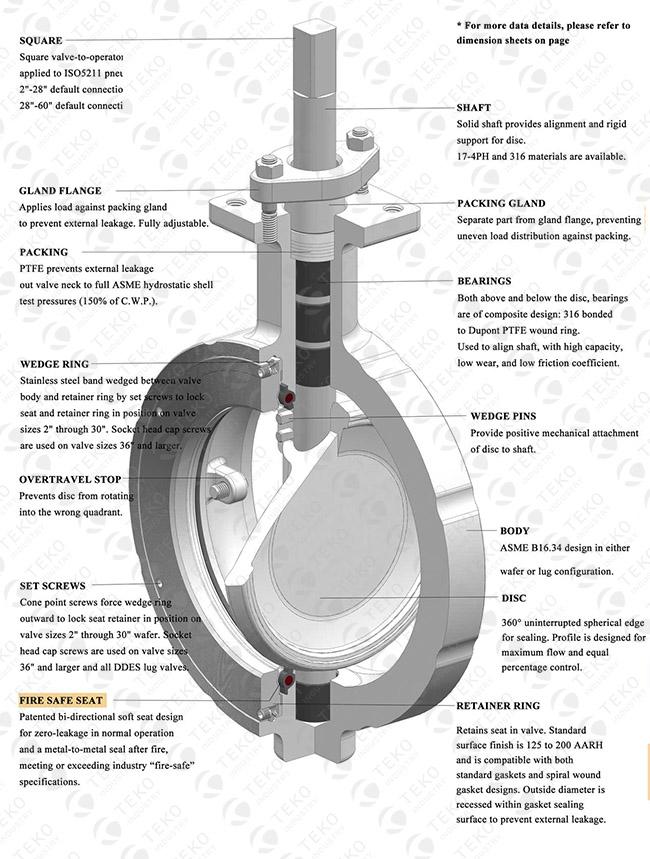

SEAT DESIGN

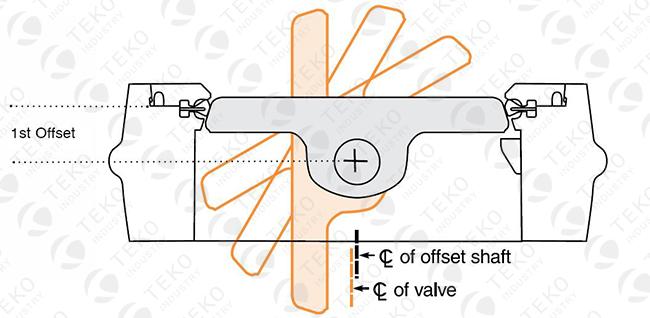

Double Eccentric High Performance Butterfly Valve, with patented seat, provides bi-directional seal, Metal Seal and API609 Fire-safe seal design.

Soft seated: Bi-directional seat with encapsulated elastomeric o-ring for resiliency. Common sea materials include PTFE, RPTFE and UHMWPE.

Metal Seated: TEKO metal seat with metal back-up ring to accomplished by the line contact between a spherical surface and conical surface.

Fire safe seat: Double seat design, bi-directional soft sea design for zero-leakage in normal operation and a metal-to-metal seal after fire, meeting or exceeding industry ”fire-safe” requirements.

High Performance Industrial Butterfly Valves API609 Double Seated Fire Safe 0

FEATURES

Body Style: Wafer, Lug and Double Flanged
ASME Class 150 and 300: 2 -1/2” – 30” (65mm - 750mm)
ASME Class 600: 3” – 14” (80mm - 350mm)
Capabilities up to 900 °F (482 °C)
Wear-resistant metal seat provides industry leading low torque
3rd party validated high temperature tested
High strength, anti-blowout one-piece stem
Nitrided disc for abrasion resistance
Contoured disc to maximize flow
Full face retaining ring protects seat in abrasive applications
Easily accessible and adjustable stem packing
Class IV bi-directional leakage rates
Alternative flange drilling available
