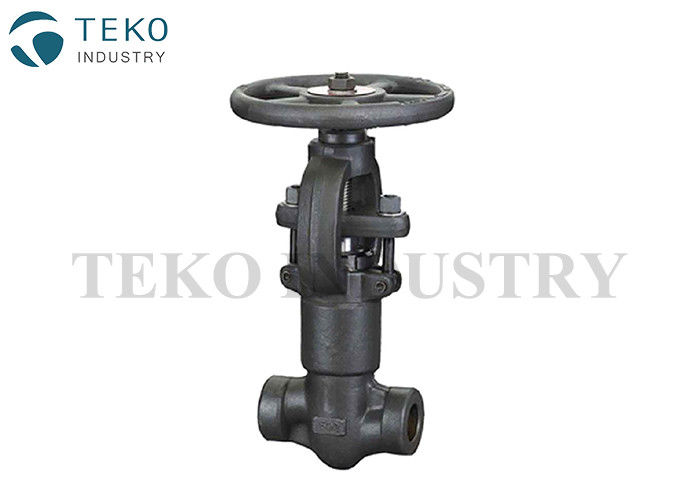

RTJ Flanged Class 1500LB Rising Stem Gate Valve With Low Fugitive Emissions

Large Image : RTJ Flanged Class 1500LB Rising Stem Gate Valve With Low Fugitive Emissions

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Z61Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Design Standard:	API 600	Feature:	Rising Stem
Port:	Full Port	Material:	A105, F304,F316
Test Standard:	API598	Pressure:	High Pressure
High Light:	forged steel globe valve , forged steel check valve

RTJ Flanged Class 1500Lb Rising Stem Forged Steel Gate Valves

Design Features

Wedges are accurately guided thru the entire stroke

Hard face seat ring as standard

Lapped and smooth finished seat faces

Non-rotating stem with surface finish to maximized packing seal for low fugitive emissions

Shell, seat, backseat are hydraulic tested upon ASPI598

Two piece gland design for self-alignment and packing compression

Applicable Standard

Wall thickness	API 602
Pressure - temperature ratings	ASME B16.34
General valve design	API 602 & B16.34
End to End dimensions	ASME B16.10
Flange design	ASME B16.5
Thread design	ASME B1.20.1
Butt Weld design	ASME B16.25
Socket Weld design	ASME B16.11
Materials	ASTM

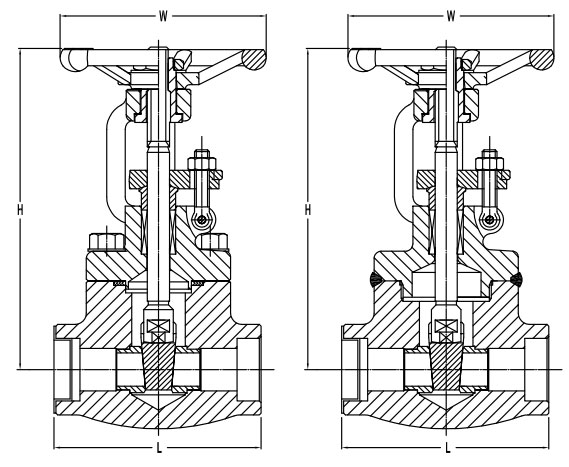

RTJ Flanged Class 1500LB Rising Stem Gate Valve With Low Fugitive Emissions 0

Part	Materials
Body	A105	A182 F11	A182 F22	A182F316 (1)
Bonnet	A105	A182 F11	A182 F22	A182 F316
Wedge	SS 420		A182 F316
Seat Ring	SST 410 + Stellite 6 Faced		SS 316
Stem	A182 F6a		A182 F316
Stem Bushing	A 439 Ductile NI-Resist Gr. D2
Gland Flange	A105		Series 300 SST
Eye Bolt	A193 Gr. B7	A193 Gr. B16	A193 Gr. B8M
Eye Bolt Nut	A194 Gr. 2H	A194 Gr. 7	A194 Gr.8M
Gland	SST 420		SS 316
Packing	Graphite		PTFE
Packing Washer / Packing Spacer	SS 410		SS 316
Gasket (2)	Spiral Wound SST with Graphite		Spiral Wound SST with PTFE
Hand Wheel	Malleable Iron or Steel
Hand Wheel Nut	Malleable Iron or Steel
Key	Steel
Body / Bonnet Bolting (2)	A193 Gr. B7	A193 Gr. B16	A193 Gr. B8M
