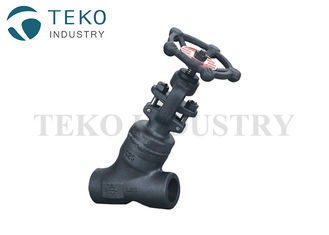

High Pressure Y Pattern Forged Steel Globe Valve Class 800 Class 1500

Large Image : High Pressure Y Pattern Forged Steel Globe Valve Class 800 Class 1500

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	J61Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Test:	API 598	End:	Thread, Weld
Feature:	Y Pattern	Structure:	Globe
Material:	Forged Steel	Pressure Rating:	800Lb, 138bar @38℃
Standard Or Nonstandard:	Standard
High Light:	forged steel globe valve , forged steel check valve

High Pressure Y Pattern Forged Steel Globe Valve Class800 Class1500

High Pressure Y Pattern Forged Steel Globe Valve Class 800 Class 1500 0

Features

Outside Screw and Yoke (OS&Y)
Two piece self aligning packing gland
Captured Graphite Spiral wound gasket
Integral backseat
Socket weld ends to ASMS B6.11
Threaded Ends (NPT) to ANSI/ASME B1.20.1
NACE MR-01-75

Standards

API-602
BS 5352
ANSI B16.34
API-598
MSS SP-25

Material

NO.	Part Name	CS to ASTM	AS to ASTM	SS to ASTM
NO.	Part Name	Type A105	Type A182 F22	Type A182 F304(L)	Type A182 F316(L)
1	Body	A105N	A182 F22	A182 F304(L)	A182 F316(L)
2	Disc	A105N	A276 304	A276 304(L)	A276 316(L)
3	Stem	A182 F6a		A182 F304(L)	A182 F316(L)
4	Seat	A105N	A182 F304	A182 F304(L)	A182 F316(L)
5	Seal Face	F182 F304L		A182 F304(L)	A182 F316(L)
6	Bonnet	A105N	A182 F22	A182 F304(L)	A182 F316(L)
7	Gasket	A105N	A182 F22	A182 F304(L)	A182 F316(L)
8	Stem Nut	A276 F420
9	Bearing Cover	A194 2H	A194 4	A194 8	A194 8M
10	H.W.Lock Nut	A194 2H	A194 4	A194 8	A194 8M
11	Handwheel	A197
12	Bolt	A193 B7	A193 B16	A193 B8	A1983 B8M
13	Nut	A194 2H	A194 4	A194 8	A194 8M
14	Gland	A216 WCB		A351 CF8
15	Hinged Bolt	A193 B7	A193 B16	A193 B8	A1983 B8M
16	Nut	A194 2H	A194 4	A194 8	A194 8M
17	Pin	A276 420		A182 F304
18	Bushing	A276 410		A182 F304
19	Eyebolt	A105	A182 F22	A182 F304(L)	A182 F316(L)
20	Accending nut	A194 2H	A194 4	A194 8	A194 8M
21	Packing	SS+Graphite
Suitable Medium		W.O.G.etc	W.O.G.etc	HNO3,CH2OOH etc
Suitable Temperature		-29~425	-29~550	-29~180

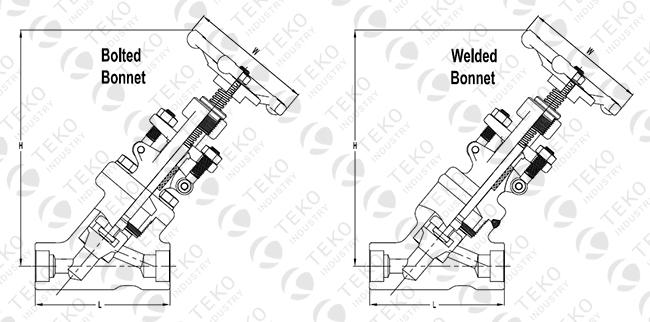

Dimensions

800Lb

NPS	Conv.	1/2	3/4	1	1 1/4	1 1/2	2
L		98	98	120	140	140	172
H (OPEN)		240	240	290	302	368	370
W		100	100	125	160	160	180
Weights	Bolted	4.6	4.6	7.6	9.8	13.7	14
Weights	Welded	4.7	4.7	7.7	9.9	13.8	14.2

1500Lb

NPS	Conv.	1/2	3/4	1	1 1/4	1 1/2	2
L		120	120	140	140	172	190
H (OPEN)		170	195	235	278	278	310
W		125	125	160	160	180	200
Weights	Bolted	4.5	6.1	7.6	9.8	14.5	20.8
Weights	Welded	4.6	6.2	7.7	9.9	14.6	21
