| Features: | Y Shape | Screen Material: | A241 304 |
|---|---|---|---|
| End Connection: | Flange | Test Standard: | JIS B2003 |
| Design: | JIS B2074/2081 | Body Material: | WCB, SCS13, SCS14 |
| High Light: | jis ball valve,jis gate valve |
||

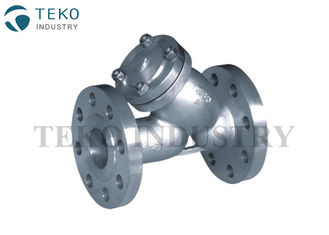

Industrial Use Carbon Steel Material Y Type JIS Strainer Valve For Pipelines
Technical Data:
Size rating: 2-1/2”~12”
Working Pressure:10K, 20K
Design Standard:JIS B2074,B081
Face to Face Standard: JIS B2074,B081
Flange Drilling:JIS B2214, B2212
Test Standard:JIS B 2003

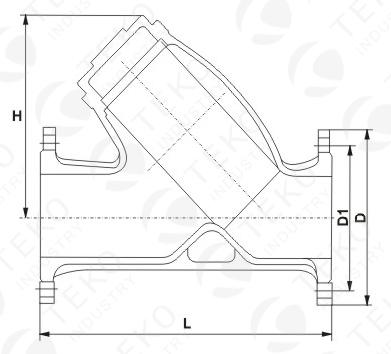

Drawing & Dimensions
| NO. | Part Name | Material |
| 1 | Body | WCB, LCB. CF8,CF8M,CF3M |
| 2 | Cover | WCB, LCB. CF8,CF8M,CF3M |
| 3 | Plug | CF8, A276 304 |
| 4 | Screen | A241 304 |
| 5 | Gasket | 304+Graphite |
| 6 | Bolt | A193 B7 |
| 7 | Nut | A194 2H |
| Size | in | 21/2" | 3" | 4" | 5" | 6" | 8" | 10" | 12" |
| mm | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
| 10K | L | 285 | 302 | 377 | 392 | 442 | 540 | 668 | 762 |
| H | 165 | 200 | 215 | 257 | 305 | 410 | 490 | 580 | |
| D | 175 | 185 | 210 | 250 | 280 | 330 | 400 | 450 | |
| D1 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 |
