Square Head Flanged End JIS Valve , Carbon Steel Gate Valve For Undergrond Service

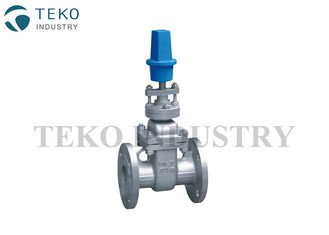

Large Image : Square Head Flanged End JIS Valve , Carbon Steel Gate Valve For Undergrond Service

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Z41H

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Structure:	Square Nut	Application:	Underground
Port Size:	DN25-DN700	Seat Material:	Hardface
Body Material:	WCB, SCS13, SCS 14	Operation:	Extension Lever
High Light:	jis gate valve , jis swing check valve

Square Head Flanged End Carbon Steel JIS Gate Valve For Undergrond Service

Technical Data of Underground Gate Valve:

Size rating: 1-1/2”~20”
Working Pressure:10K, 20L
Design Standard:JIS B2073
Flange Drilling:JIS B2212
Test Standard:JIS B 2003

Features

WCB, SCS13, SCS14 for options
Square nut for underground services
Hardface trim for long life span
Accrodign to JI standard

Material List:

Square Head Flanged End JIS Valve , Carbon Steel Gate Valve For Undergrond Service 0

NO.	Part Name	Material
1	Body	A216 WCB	SCS13	SCS14
2	Seat	A216 WCB	SCS13	SCS14
3	Disc	A216 WCB	SCS13	SCS14
4	Stem	A182-F304	304SS	316SS
5	Gasket	PTFE	PTFE	PTFE
6	Cover	A216 WCB	SCS13	SCS14
7	Packing	PTFE	PTFE	PTFE
8	Gland Bush	A216 WCB	SCS13	SCS14
9	Stem Nut	A194-2H	A194-2H	A194-2H
10	Bolts	A193-B7	A193-B8	A193-B8
11	Nuts	A194-2H	A194-8	A194-8
12	Bolts	A193-B7	A193-B8	A193-B8
