Product Details:
Payment & Shipping Terms:
|
| Structure: | Slient Check | Name: | Foot Valve |
|---|---|---|---|
| End Connection: | Flange | Test Standard: | JIS B2003 |
| Design: | JIS B2074/2084 | Material: | WCB, SCS13 |
| High Light: | jis ball valve,jis gate valve |
||

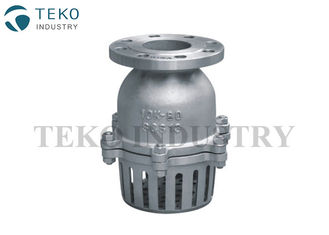

Carbon Steel Flanged EndSwing Type JIS Foot Valve For pumping System
Technical Data:
1) Size rating: 1-1/2”~8”
2) Working Pressure:10K, 20K
3) Design Standard:JIS B2074,B084
4) Face to Face Standard:JIS B2002
5) Flange Drilling:JIS B2214, B2212
6) Test Standard:JIS B 2003
Material List and dimensions for Foot Valve
| NO. | Part Name | Material | |
| 1 | Body | WCB | SCS13 |
| 2 | Seat | 25+13Cr | SCS13 |
| 3 | Disc | 25+13Cr | SCS13 |
| 4 | Screen | PTFE | PTFE |
| 5 | Gasket | WCB | SCS14 |
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| D | 140 | 155 | 175 | 185 | 210 | 250 | 277 | 330 | 398 | 440 |
| Do | 152 | 168 | 188 | 230 | 258 | 298 | 316 | 380 | 395 | 420 |
| H | 174 | 190 | 225 | 260 | 280 | 334 | 370 | 426 | 370 | 424 |
