Flanged End Swing Type JIS Valve , Bolted Cover JIS Swing Check Valve With 13Cr Stellite 6

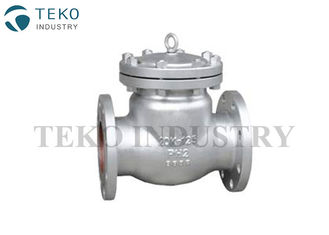

Large Image : Flanged End Swing Type JIS Valve , Bolted Cover JIS Swing Check Valve With 13Cr Stellite 6

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	H44H

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Structure:	Swing	Deisign:	JIS B2074
Seat Material:	Hardface	Body Material:	Carbon Steel, SCS13, SCS14
End Connection:	Flange	Face To Face:	JIS B2002
High Light:	jis ball valve , jis gate valve

Flanged End Swing Type Bolted Cover JIS Swing Check Valve With 13Cr Stellite 6

Technical Data:

1) Size rating: 1/2”~4”
2) Working Pressure:20K
3) Design Standard: JIS B2084
4) Face to Face Standard: JIS B2002
5) Flange Drilling: JIS B2214
6) Test Standard:JIS B 2003

High lights

Horizontal or vertical installation

All sizes rated for full vacuum service

Minimum back pressure to seat disc tightly

Top access cover facilitates maintenance without body removal from pipeline

Low pressure drop

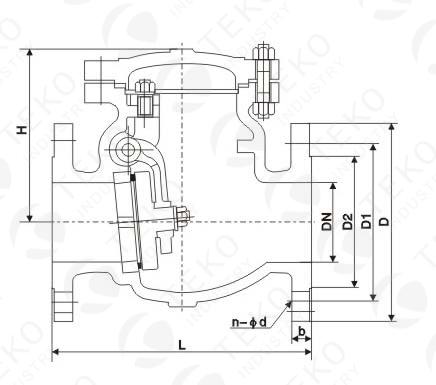

Material List & Dimensions

Flanged End Swing Type JIS Valve , Bolted Cover JIS Swing Check Valve With 13Cr Stellite 6 0

ITEM	PARTS NAME	CARBON STEEL
1	Body	A216-WCB
2	Bonnet	A216-WCB
3	Disc	A216-WCB
4	Disc Nut	SS304
5	Body/Cover Bolting	ASTM A192 B7 / A194 2H
6	Arm / Hinge	A216-WCB
7	Body / Bonnet Gasket	PTFE
8	Hinge Pin	SS304

JIS 10K Dimensions

L	Flange 10K					H
L	D	D1	D2	b	Z-￠d	H
203	155	120	100	16	4*19	103
216	175	140	120	18	4*19	113
241	185	150	130	18	8*19	128
292	210	175	155	18	8*19	147
330	250	210	185	20	8*23	220
356	280	240	215	22	8*23	244
495	330	290	265	22	12*23	287
622	400	355	325	24	12*23	348
698	445	400	370	24	16*25	380

JIS 20K Dimensions

DN	L	Flange 20K					H
DN	L	D	D1	D2	b	Z-￠d	H
15	108	96	70	51	14	4*15	54
20	117	100	75	56	14	4*15	59
25	127	125	90	67	14	4*19	65
32	140	135	100	80	16	4*19	75
40	165	140	105	81	16	4*19	83
50	203	155	120	96	16	4*19	96
65	216	175	140	116	18	4*19	110
80	241	185	150	135	18	8*19	125
100	292	210	175	151	18	8*19	145
