JIS Standard Manual Globe Valve Hardface Seat Material With Handwheel Operation

Large Image : JIS Standard Manual Globe Valve Hardface Seat Material With Handwheel Operation

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	J45H

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Structure:	Globe	Body Material:	SCPH2-11, SCS13,SCS14 Etc
Seat Material:	Hardface	Operation:	Handwheel
End Connection:	Flange	Design:	JIS B2081
High Light:	jis gate valve , jis swing check valve

JIS Standard Non-rising Stem Stainless Steel JIS Glob Valve With Manual Operation

Technical Data:

1) Size rating: DN15 to DN100
2) Working Pressure:10K
3) Design Standard:JIS B2071
4) Face to Face Standard:JIS B2002
5) Flange Drilling:JIS B2212
6) Test Standard:JIS B 2003

Capability Standard of Non-rising Stem Globe Valve

Body Material	SCPH2-11	SCPH-32	SCS13A	SCS19A	SCS14A	SCS16A	SCPL1
Suitable Temperature	≤425℃	≤540℃	≤275℃	≤200℃	≤275℃	≤200℃	"-45~150℃"
Suitable Medium	Water,Steam, Oil		Nitric Acid		Acetic Acid		Liquid Ammonia

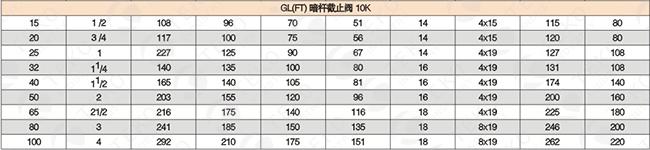

Dimensions

JIS Standard Manual Globe Valve Hardface Seat Material With Handwheel Operation 0

Rising Stem VS Non-rising Stem

Rising stems are fixed to the disc and they rise and lower together as the valve is operated, providing a visual indication of the valve position and making it possible to grease the stem. A nut rotates around the threaded stem and moves it. This type is only suitable for above ground installation.

Non-rising stems are threaded into the gate, and rotate with the disc rising and lowering inside the valve. They take up less vertical space since the stem is kept within the valve body. Gate valves with non-rising stems are suitable for both above ground and underground installations.
