Product Details:
Payment & Shipping Terms:
|
| Structure: | Globe | Port Size: | DN25-DN200 |
|---|---|---|---|
| Seat Material: | Hardface | Operation: | Extension Lever |
| End Connection: | Flange | Design: | JIS B2071 |
| High Light: | jis ball valve,jis swing check valve |
||
Plug Disc high Pressure 20K JIS Globe Valve With Stellite Deposited
Applicable Standard
| Design and Manufacture | Face to face | Flange Dimensions | Pressure Temperature Rating | Inspection and Test |
| JIS B2073 2083 | JIS B2002 | JSI B2212 B2214 | JIS B2073 B2083 | JIS B2003 |
Feature:
Different Operation for options: Handwheel, Electric, Bevel Gear
Outside yoke & Stem design
Plug disc guided by the stem on all sizes
Bolted Bonnet For better sealing
heavy duty full ported rings welded into the seat for long life span.

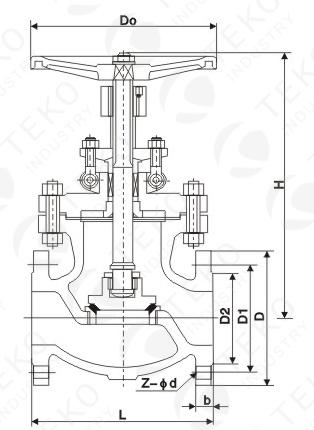

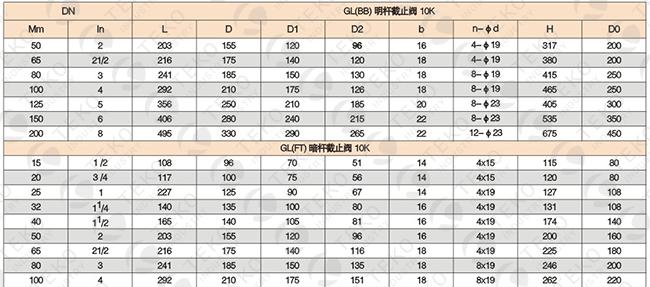

Drawing:
