Stainless Steel JIS Gate Valve Manual Operation Non - Rising Stem With Hardface Trim

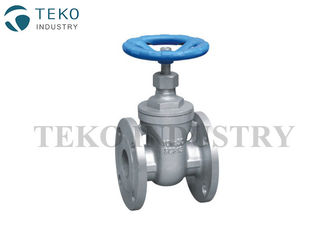

Large Image : Stainless Steel JIS Gate Valve Manual Operation Non - Rising Stem With Hardface Trim

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Z45H-10K

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Structure:	Non-rising Stem	Application:	Water, Gas, Oil
Port Size:	DN15-DN100	Seat Material:	Hardface
Body Material:	WCB, SCS13, SCS 14	Installation:	Any Directions
High Light:	jis ball valve , jis swing check valve

Stainless Steel Manual Operation Non-rising Stem JIS Gate Valve With Hardface Trim

Applicable Standards

Design and Manufacture	Face to face	Flange Dimensions	Pressure Temperature Rating	Inspection and Test
JIS B2073 2083	JIS B2002	JSI B2212 B2214	JIS B2073 B2083	JIS B2003

Dimensions of Non-rising Stem Gate Valve

DN	L	H	D0
15	82	130	76
20	92	150	76
25	102	172.5	107
32	110	176	107
40	126	178	117
50	140	187.5	133
65	172	214.5	160
80	192	250	180
100	210	298	200

Different between Rising Stem and non-rising stem

Non-rising stem gate valves

* Adv.:This kind of valve remain the same height when open&shut,appropriate for limited installed space,through open&shut indicator to know open or shut extend.

* Dis-adv.:But the the stem thread can be lubricated and touch with medium, easliy corrosion.

Rising stem gate valves

* Adv.:Small flow resistance force;open & shut need small force;wide application situation; bidirectional flow available

* Dis-adv: more complicate structure,big size need more application space.
