Split Body Side Entry Design JIS Valve , L Port Three Way Ball Valve In SCS13 SCS14 Material

Large Image : Split Body Side Entry Design JIS Valve , L Port Three Way Ball Valve In SCS13 SCS14 Material

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q44F-10K

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Structure:	Three Way	Port:	L Port
Application:	Water, Gas, Oil	Port Size:	DN15-DN300
Seat Material:	PTFE	Body Material:	WCB, SCS13, SCS 14
High Light:	jis ball valve , jis gate valve

Split Body Side Entry Design L Port Three Way JIS Ball Valve In SCS13 SCS14 Material

TEKO JIS Three way ball valve is used to change the flow directional and connect or cut off the media in the pipe.

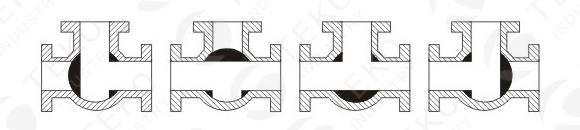

Flow Direction

Split Body Side Entry Design JIS Valve , L Port Three Way Ball Valve In SCS13 SCS14 Material 0

Features

Positive alignment of body. ∙

Blow-out proof stem for safety. ∙

Sphericity tolerance of the ball is unsurpassed. ∙

Multiple layers of adjustable PTFE chevron packing rings for standard model enable excellent fugitive emission control.

Positive position indication

Locking device Options

Heavy duty body construction.

Machined ISO 5211 top mounting flange.

Dual shaft bearings for high cycle life operation

Options:

NACE MR-01-75

Gratite seat for high temp. service (2 seats}

Extension bonnet for low temp. service (2 seats)

Special tests

- X-ray (RT)

- Liquid penetrant (PT)

- Positive Material Identification (PMI)

Dimensions

DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300
L	150	160	180	200	220	240	260	280	320	380	440	550	670	720
D	95	100	125	135	140	155	175	185	210	250	280	330	400	445
D1	70	75	90	100	105	120	140	150	175	210	240	290	355	400
Z-￠d	4*15	4*15	4*19	4*19	4*19	4*19	4*19	8*19	8*19	8*23	8*23	12*23	12*25	16*25
