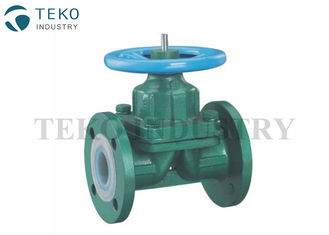

Plastic PTFE Lined Diaphragm Valves Full Bore Through Type For High Corrosive Liquid

Large Image : Plastic PTFE Lined Diaphragm Valves Full Bore Through Type For High Corrosive Liquid

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	G41F4

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200 tons per year

Contact Now

Detailed Product Description

Dipaphragm Material:	PTFE, PFA, EPDM	Applications:	Aggressive Or Toxic Liquid
Structure:	Throttling	Design Standard:	GB 12239
Operation:	Manual, Electric, Pneumatifc	Body Material:	A351 CF8, CF8M
High Light:	ptfe lined ball valve , ptfe lined butterfly valve

Full Bore Through Type Plastic PTFE Lined Diaphragm Valve For High Corrosive Liquid

Features
Leak tight: TEKO diaphragm Valve delivery 100% leak-tight shutoff in accordance with standard GB/T13927.
Easy Maintenance: Three-part design allows maintenance and actuator retrofitting without removing the vale body from the pipeline. This makes the lower cost of ownership compared to other valve types.

MATERIALS LIST

Designation	Specification
BODY	A351 CF8+PFA (Fluoropolymer) LINER
BONNET	A351 CF8
HANDWHEEL	A351 CF8
STEM	SS304
DIAPHRAGM	PTFE

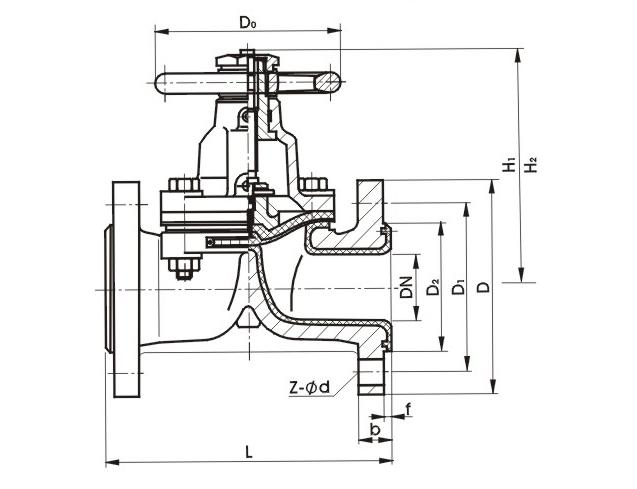

DIMENSIONS

SIZE		ØA	H	H	I	J
in	mm		PD11	PD51
1/2"	15	15	108	114	100	100
3/4"	20	20	146	123	100	100
1"	25	25	146	133	140	100
1-1/2"	40	40	175	165	140	140
2"	50	50	200	196	150	140
2-1/2"	65	65	226	222	226	140
3"	80	80	260	260	240	190
4"	100	100	327	313	320	230
