Fluoropolymers Lined PTFE Lined Globe Valve Y Pattern With Small Pressure Drop

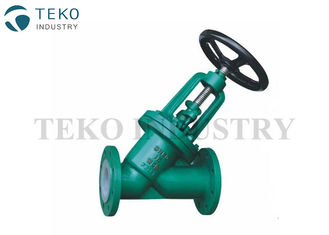

Large Image : Fluoropolymers Lined PTFE Lined Globe Valve Y Pattern With Small Pressure Drop

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	J44F46

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200 tons per year

Contact Now

Detailed Product Description

Features:	Y Pattern	End Connection:	Flange
Feature:	Low Pressure Loss	Meida:	Aggressive Or Toxic Liquid
Structure:	Globe	Liner:	PTFE, FEP, PFA
High Light:	ptfe lined ball valve , ptfe lined butterfly valve

Y Pattern Small Pressure Drop Fluoropolymers Lined PTFE Lined Globe Valve

Description

This type of valve is used extensively in the applications involving severely corrosive and toxic flowing media. Within its pressure limitations, this type of valve may be applied to most media. The PTFE lined body design provides an economical alternative to alloy valve bodies in wide variety of applications.

The PTFE lined globe valve body has carbon or glass filled PTFE trim parts, push down to close action and positive shutoff.

Features

Fluid Compatibility- The lined material protects metal parts from process fluid making it ideal for controlling severely corrosive media.
Economy- Since metal parts are protected from process fluid use of expensive alloys is not needed.
Integrity- The body design provides a mechanical bond between body and liner, which minimizes the potential of body liner separation.
Long Life Bellows Seal- provides for absolute gland sealing.

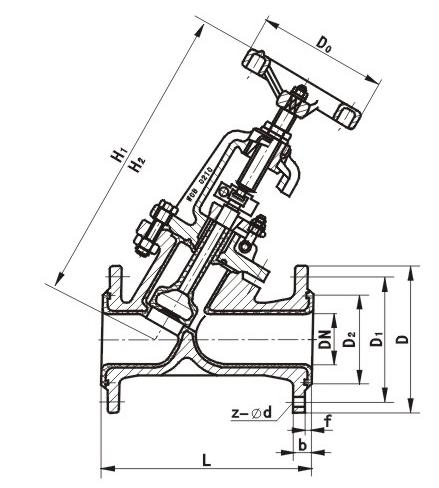

Material List:

Fluoropolymers Lined PTFE Lined Globe Valve Y Pattern With Small Pressure Drop 0

NO.	Parts Name	Material
NO.	Parts Name	Cast Iron	WCB	CF8	CF8M
1	Body,Bonnet	HT250	WCB	CF8	CF8M
2	Disc,Stem	35	1Cr13	1Cr17Ni2	1Cr17Ni2
3	Liner,Seat	PTFE, PCTFE, FEP, PFA, PO
4	Packing	PTFE
5	Handle	HT200
