Straight Through PTFE PFA Lined Globe Valve PN10/16 Presssure For Aggressive Liquid

Large Image : Straight Through PTFE PFA Lined Globe Valve PN10/16 Presssure For Aggressive Liquid

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	J41F4

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200 tons per year

Contact Now

Detailed Product Description

End Connection:	Flange	Design:	GB12233
Presssure:	PN10/16, 150Lb	Liner Material:	PTFE, FEP, PFA Etc
Structure:	Globe	Face To Face:	GB 12221
High Light:	ptfe lined ball valve , ptfe lined gate valve

Straight Through PTFE PFA Lined Globe Valve For Aggressive Liquid

PTFE Lined Globe Valve

The TEKO Globe valve is available as a compact valve for on-off service. Even though Globe valves are generally used for throttling applications, care should be taken when using it to throttle chemical media as the PTFE liners have a limited ability to withstand high velocity erosive service.

Features

1. PTEF wall thickness 5 to 8mm

2. Streamlined Valve Body

3. Suitable for high differential pressures

4. Trim available in special materials

5. Easy Maintenance access

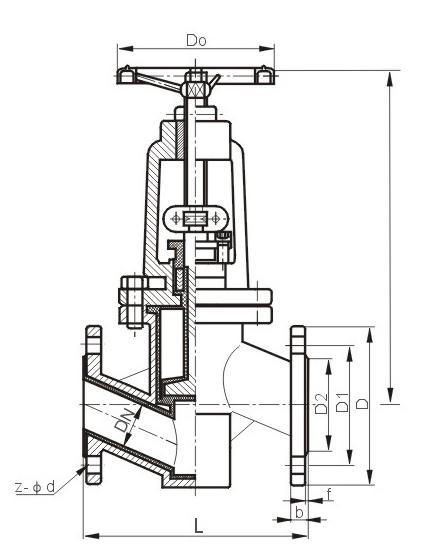

Dimensions

Straight Through PTFE PFA Lined Globe Valve PN10/16 Presssure For Aggressive Liquid 0

Size		L	D	D1	D2	f	b	n-d	D0	H	H1
DN	NPS	1.0MPa
15		90	95	65	45	2	14	4-14	100	240	265
20		95	105	75	55	2	16	4-14	100	245	270
25	1	100	115	85	65	2	16	4-14	120	250	275
32	1	105	135	100	78	2	18	4-18	120	260	290
40	1	115	145	110	85	3	18	4-18	140	290	325
50	2	125	160	125	100	3	20	4-18	140	300	335
65	2	145	180	145	120	3	20	4-18	160	355	400
80	3	155	195	160	135	3	22	4-18	160	400	450
100	4	175	215	180	155	3	22	8-18	180	455	495
125	5	200	245	210	185	3	24	8-18	180	530	560
150	6	225	280	240	210	3	24	8-23	240	605	650
200	8	275	335	295	265	3	26	8-23	240	650	770
250	10	325	390	350	320	3	28	12-23	280	680	800
300	12	375	440	400	368	4	28	12-23	280	710	835
1.6MPa
15		90	95	65	45	2	14	4-14	100	240	265
20		95	105	75	55	2	16	4-14	100	245	270
25	1	100	115	85	65	2	16	4-14	120	250	275
32	1	105	135	100	78	2	18	4-18	140	260	290
40	1	115	145	110	85	3	18	4-18	140	290	325
50	2	125	160	125	100	3	20	4-18	160	300	335
65	2	145	180	145	120	3	20	4-18	180	355	400
80	3	155	195	160	135	3	22	8-18	240	400	450
100	4	175	215	180	155	3	24	8-18	240	455	495
125	5	200	245	210	185	3	26	8-18	280	530	560
150	6	225	280	240	210	3	28	8-23	320	605	650
200	8	275	335	295	265	3	30	8-23	360	650	770
2.5MPa
15		90	95	65	45	2	16	4-14	120	245	270
20		95	105	75	55	2	16	4-14	120	250	275
25	1	100	115	85	65	2	16	4-14	140	260	290
32	1	105	135	100	78	2	18	4-18	140	290	325
40	1	115	145	110	85	3	18	4-18	160	300	335
50	2	125	160	125	100	3	20	4-18	180	355	400
