Center Lined Body PTFE Lined Valves , Wafer Connection PTFE Lined Butterfly Valve

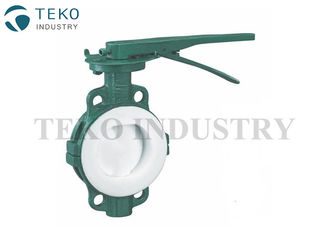

Large Image : Center Lined Body PTFE Lined Valves , Wafer Connection PTFE Lined Butterfly Valve

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	D71F4

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200 tons per year

Contact Now

Detailed Product Description

Operation:	Manual, Electric	Body:	Center Lined
Presssure:	PN10/16, 150Lb	Liner Thickness:	As Standard
Structure:	Butterfly	Desing:	MSS SP-67
High Light:	ptfe lined ball valve , ptfe lined butterfly valve

Center Lined Body PTFE Coated Wafer Connection PTFE Lined Butterfly Valve

GENERAL CHARACTERISTICS

• DN 50 – DN 250 (2“ - 10”)

• Maximum working pressure: 10 bar

• Concentric design with epoxy coated body

• Shut-off and regulating device

• No limits in position in piping (horizontal/vertical)

• Excellent shut off protection (buble tight shut off) and high KV values

• Disc has 3 mm thickness of pure virgin PTFE

• Upper stem seal system prevents any environmental contaminants from

entering the stem bore

• Extended neck design allows for piping insulation and enables easy access for

APPLICAITONS

• Chemical industry

• High purity water

• Food industry

• Pharmaceutical industry

• Sanity industries

• Corrosive & toxic media

• Adhesive & acids

• Paper industry

• Chlorine production

• Mining industry

• Paint manufacture

MATERIAL LIST

NO.	Parts Name	Material
NO.	Parts Name	Cast Iron	WCB	CF8	CF8M
1	Body	HT250	WCB	CF8	CF8M
2	Disc	WCB	35#	CF8	CF8M
3	Shaft	1Cr13	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
4	Liner	PTFE, PCTFE, FEP, PFA, PO
5	O ring	FPM
6	Handle	ZI101
