Corrosion Resistant PFA PTFE Lined Valves Zero Leakage With Floating Ball Design

Large Image : Corrosion Resistant PFA PTFE Lined Valves Zero Leakage With Floating Ball Design

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q41F4

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Type:	Ball Valve	Liner:	PTFE, FPA, PTFE
Fluid:	Chemical Solutions	Presssure:	PN10/16, 150Lb
Liner Thickness:	As Standard	Structure:	Floating Ball
High Light:	ptfe lined ball valve , ptfe lined gate valve

Corrosion Resistant PFA PTFE Lined Ball Valve With Floating Ball Design

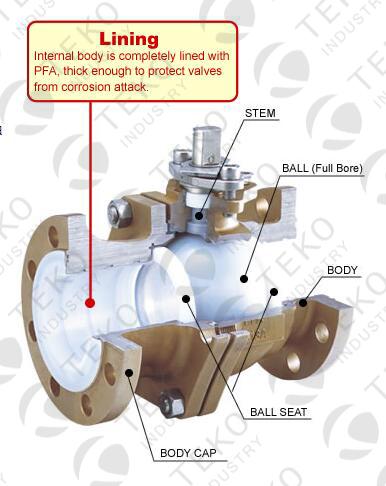

About Fluorine Lined Ball Valve

The Q41F46 Fluorine Lined Ball Valve have body designs of two pieces and three pieces structure. In addition to the features of low resistance, quick action and simple structure, the ball valve also has the following advantages:

1. With the FEP liner, it has good chemical stability, suitable for all kinds of corrosive liquid except the fusing alkali metal and fluoride.

2. With full bore and flow ball design, the valve can achieve zero leakage within the pressure range.

3. Ball and stem are forge to one piece, avoid the danger of stem pull-out.

4. Compact structure, small cavity prevent the liquid deposited on the flow passage. PTFE packing can also help to prevent from leakage.

5. Two pieces and three pieces body can fit different piping system and working conditions. The three pieces allows two sides dissembled from the main body, making it easy for maintenance.

Design Specification

As per GB12237/API608/API 6D

Nominal Pressure: PN 1.0-2.5 (Mpa)

Nominal Diameter: DN 15-400 (mm)

Actuator

Manual, Electric, Worm gear, Pneumatic
