A216 WCB Material Wedge Gate Valve , Flanged Gate Valve ANSI 150Lb ASME B16.5

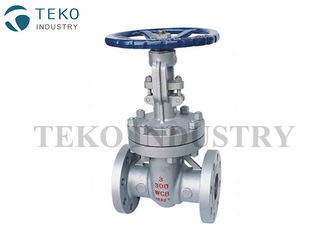

Large Image : A216 WCB Material Wedge Gate Valve , Flanged Gate Valve ANSI 150Lb ASME B16.5

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	Z41H

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Structure:	Gate	End Type:	Flange
Working Pressure:	150Lb-2500Lb	Bonnet Seal:	Bolted Bonnet
Seat Material:	Stellite Deposted Or As Requested	Fluid:	Gas, Steam, Etc
High Light:	electric actuated gate valve , wcb gate valve

A216 WCB Material Flange End Wedge Gate Valve ANSI 150Lb ASME B16.5

Flange End Gate valve

Size range: 1/2"-64"
Pressure rating(Lb): ANSI Class 150-600
Weight: 1-11000 KGs
Material: WCB, LCC, WCC, WC6,WC9, C5,C12, C12A, CF8, CF8M, CF3, CF3M, CN7M, Monel Inconel, Duplex steel
Monthly Capacity (tons): 800
Quality Certificate: ISO 9001, CE/PED

Design Features:

A positive backseat, high quality packing material and improved stuffing box design ensure tighter stem seal
Fully guided solid wedge reduces wear on seating surfaces
Recessed body-bonnet joint design captures the stainless steel spiral wound gasket ensuring seating integrity
Weld-in seat design ensures tight and effective seat assembly
Stud and bolt arrangement facilitates packing maintenance
The T-head stem design provides positive disc to stem connection and ensures effective seating operation

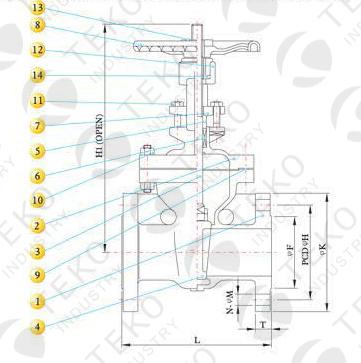

Material List

NO	PART NAME	MATERIAL	QTY
1	BODY	ASTM A351 Gr.CF8M	1
2	BONNET	ASTM A351 Gr.CF8M	1
3	STEM	ASTM A276 Gr.316	1
4	DISC	ASTM A351 Gr CF8M	1
5	CLAND	ASTM A351 Gr CF8	1
6	GLAND PACKING	PTFE	1
7	GLAND FLANGE	ASTM A351 Gr.CF8	1
8	HAND WHEEL	ASTM B A536 Gr. B65-45-12	1
9	GASKET	PTFE(OR NON ASBESTOS)	1
10	BONNET BOLT/NUT	ATEM A 193 Gr.B8/ASTM A194 Gr.8	4-16
11	CLAND BOLT'NUT	ATEM A 193 Gr.B8/ASTM A194 Gr.8	2
12	YOKE SIEEVE	BRONZE DUCTILE NI.RESIST)	1
13	HAND WHEEL NUT	STEEL	1
14	YOKE SLEEVE NUT	SS304	1
