Product Details:
Payment & Shipping Terms:
|
| Body Material: | WCB/CF8/CF8M/CF3/CF3M | End Connection: | Flange, Butt Weld |
|---|---|---|---|
| Size Rating: | NPS 2"-48" | Applications: | WOG Etc. |
| Operation: | Bevel Gear, Handwheel Or As Requested | Seat Material: | PTFE |
| High Light: | electric actuated gate valve,wcb gate valve |
||

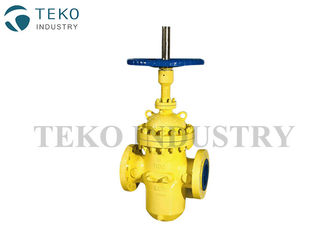

Casting Steel WCB Material Flat Slide Plate Gate Valve Without Throught Conduit
What is Flat gate valves
It is a casted full bore flat valve with flexible wedge, elastomeric closure and external screw suitable even for regulation, manufactured according API standard.
Quick Information:
| Size | from 2″ to 48″ |
| Pressure | 150 – 1500LB |
| Material | WCB, LCB, WC6, WC9, CF8, CF3, CF3M, and CF8M |
| Design and production standard | API 600, API6D and ASME B16.34 |
| End to End | API 6D, ASME B16.10 |
| End Connection | ANSI B16.5, ASME B 16.47, ANSI B 16.25 |
| Test Standard | API598, API6D |
| Actuation | can operate with lever, gear box, pneumatic or electric actuator with handwheel for emergencies. |
| Medium | The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc. |
| Working temperature | from -46ºC or -50ºC (stainless steel constructions) and -29ºC (carbon steel constructions) up to 600℃ |
Product Features
1. The flat gate valve seat adopts the structure of O-ring seals and pretightening float valve seat, the soft sealing inlays fluoroplastic, it provides the function of double sealings: fluoroplastic to metal and metal to metal. And at the same time, the fluoroplastic can remove the dirt of the gate disk.
2. Of the metal to metal sealing, there is a grease injection structure outside the valve, grease injects the sealing part through the seat, in this way achieves the aim of zero leakage.
3. Through conduit gate valve always coincide with the sealing surface,whether the disc is full open-or full-closed; sealing surface to be protected from scouring by media dilectly, thereby extending the service life. In full- time, smooth channel for the direct and flow resistance coefficient is extremely small, no pressure drop and head loss.
