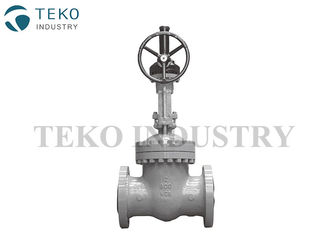

ANSI Standard Electric Actuated Gate Valve Easy Installation With API Certification

Large Image : ANSI Standard Electric Actuated Gate Valve Easy Installation With API Certification

Product Details:

Place of Origin:	China
Brand Name:	TEKO
Certification:	CE Certificate
Model Number:	Z41y

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By Negotiation
Packaging Details:	By polywooden cases
Delivery Time:	15 days after deposite
Payment Terms:	L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	50 tons per month

Contact Now

Detailed Product Description

Design:	API600	Flange End:	ANSI B 16.5
Butt Weld:	ANSI B 16.10	Face To Face:	ANSI B 16.34
Test & Inpsection:	API 598	Material:	WCB, WC6, WC9, CF8,CF8M Etc
High Light:	motor operated gate valve , wcb gate valve

ANSI Standard API certificated Wedge Gate Valve With Electrtic Actuator

Constructive and functional characteristics

type: bolted bonnet, outside screw and yoke
flexible wedge
rising stem with top sealing (backseat)
full bore
flanged ends
shutting-off: by rotating the handwheel in clockwise direction
mounting position: any

Execution

basic design according to API 600
face to face according to ANSI B16.10
flanges according to ANSI B16.5
flange facings: 0,06" raised face;
pressure - temperature ratings according to ASME B16.34
shell wall thickness according to API 600
testing according to API 598
trim standard: no. 1 main sealing 13% Cr / 13% Cr.

On Request

other basic design according to API 6D
other shell materials (Carbon steel, Stainless steel, Monel, Duplex, Inconel)
other trim
other flange facings according to ANSI B 16.5 or B/W ends to ANSI B16.25
other type gasket body - bonnet
lantern ring for class 300
drain tapings
by-pass
open and shut indicator
electric actuator operation
manufactured according to specification NACE MR 0175 for hydrogen sulphide and sour gas service
