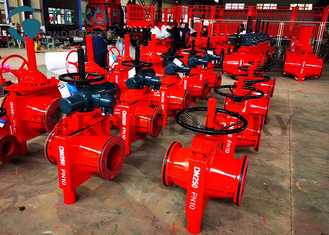

SS Pinch Bar Sleeve Slurry Pinch Valve Two Way Full Bore

Large Image : SS Pinch Bar Sleeve Slurry Pinch Valve Two Way Full Bore

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	GJ941X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	30 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Contact Now

Detailed Product Description

Applications:	Chemical, Acid	Port Size:	DN25 To DN1200
Drived By:	Manual, Electric	Body Material:	Carbon Steel, Stainless Steel
Sleeve Pressure:	Medium And Low Temperature	Function:	ON-OFF, Regulation
Sleeve Material:	SBRT, NR, EPDM Etc
High Light:	Sleeve Slurry Pinch Valve , SS Pinch Bar Slurry Pinch Valve , Two Way Slurry Pinch Valve

Two Way Full Bore SS Pinch Bar Sensomate Sleeve Slurry Pinch Valve

Description

TEKO electric actuated pinch valve is ideal control valve engineered with the highest quality standards. It is made specially for slurry of high pressure, abrasion, corrosion and aggressive. Our pinch valve offers substantial savings through improved performance, long service lifetime and low maintenance costs with pressure capabilities up to 10 bar.

Main Features

• Small, compact design
• Hygienic and easy to clean (replace tubes)
• Can handle whole blood and particulate matter
• Unobstructed flow path
• Wide variety of easily replaceable tubing sizes and
materials available
• 100% tested

Valve Sleeve Options

Natural Rubber
Nitrile Rubber
Neoprene
So on

General features and ranges for Pinch Valves

Diameter ranges	From 15mm to 1000mm.
Connection to the pipe	Bead end, Flange, Screwed, Slip-on, Socket.
Sleeve material	Chlorobutyl (CIIR), EPDM, Hypalon® (CSM), Natural rubber (NR), Neoprene (CR), Nitrile (NBR), Polyurethane (PU), SBRT, Viton (FPM)
Temperature range	From -50ºc up to +160ºC - (Depending on material).
Pressure range	From -1 up to 25 bar - (Depending on material).
