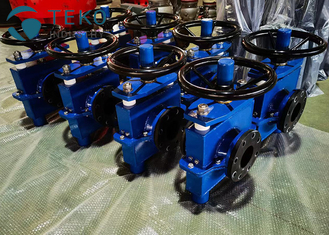

High Strength Polyester Cord Pinch Hose Valve Isolation Service For Mining Tail

Large Image : High Strength Polyester Cord Pinch Hose Valve Isolation Service For Mining Tail

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	GJ41X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	30 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Contact Now

Detailed Product Description

Applications:	Slury, Mining Tail	Port Size:	DN25 To DN1200
Drived By:	Handwheel, Pneumatic, Electric	Body Material:	Carbon Steel, Aluminum, Cast Iron
Sleeve Pressure:	Medium And Low Temperature	Sleeve Type:	Full Bore
High Light:	Polyester Cord Pinch Hose Valve , Mining Tail Pinch Hose Valve

Isolation Service High Strength Polyester Cord Pinch Hose Valve For Mining Tail

About Pinch Hose Valve

The sealing in TEKO pinch valves is achieved throttling the flexible tube of the valve named elastic sleeve which is the only part in contact with the medium.

Pinch valves are suitable for handling slurries and solids in suspension, avoiding contact with the valve mechanism and any contamination towards or from the environment.

Method of Control

Pinch valves use a liner motion method of control. The disc is a flexible material liner, similar to a diaphragm. The stem of the pinch valve has a free-moving connection to a moving closure bar, called a compressor, which is located directly above the liner. As the handwheel is turned, the compressor lowers the liner to squeeze the liner against the bottom support to close the valve. The pressure of the media in the valve can help in starting or stopping the flow.

Benefits

100% tight shut off even with the particle-containing fluid.
Full bore Ensure free flow of medium and less pumping energy is needed
Sleeve is the only replaceable part and can be changed easily on site.
High corrosion resistance and flexible sleeve
Material of sleeve according to the process conditions

Material Selection

Body	Carbon steel, cast iron Aluminum, plasltic
Stem & Pinch bar	carbon steel, 40Cr or SS
Stud	Corrosion resistant 8.8 class
Match flange	Carbon Steel
Sleeve Material	Natural Rubber, NBR, EPDM, etc
