Product Details:
Payment & Shipping Terms:
|
| Material: | SS CF8, CF8M, Etc | End Type: | Flange |
|---|---|---|---|
| Driven By: | Manual, Pneumatic, Electric, Hydraulic | Bore Hole: | FB, RB |
| Structure: | Splited Body | Medium: | Oil Gas, Water Etc |
| High Light: | SS Pneumatic Actuated Ball Valve,CF8M Pneumatic Actuated Ball Valve |
||

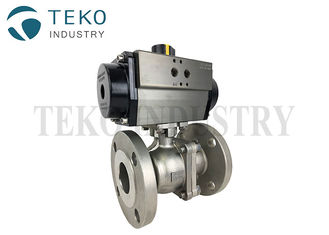

SS Full Bore General Using Flanged 2 PC Pneumatic Actuated Ball Valve
Product Info
| Valve Type | Actuated Ball Valve |
| Valve Material | Stainless Steel |
| Body Design | 2 PC Full Bore |
| Seat material | PTFE |
| Pins/Trim | Stainless Steel 316 |
| Driven by | Pneumatic Actuator |
| Delivery | 15 days after payment |
Features & Benefits
• Full Port for unobstructed flow
• Investment cast 2-piece body
• Live-loaded Pyramidal stem seal design
• Blow-out proof stem
• High cycle stem design
• Integrated mounting pad for actuators
• Compact assembly
• Complete line of accessories
Available Actuators
• Pneumatic (spring return)
• Pneumatic (double acting)
• Manual Handle
Construction
| Number | Item | Material |
| 1 | Visual Indicator | UV Stabilised Thermoplastic |
| 2 | Adjustable Stops | 316 Stainless Steel |
| 3 | Double Acting Pneumatic Actuator | Anodized Aluminium |
| 4 | Pressure Ports / Namur Interface | Anodized Aluminium |
| 5 | Chevron Seals | Pure Graphite |
| 6 | Backing O-ring | Viton |
| 7 | Thrust Washer | Pure PTFE |
| 8 | Ball | Polished 316 Stainless Steel |
| 9 | Seats | Pure PTFE |
| 10 | Mounting Pad | 316 Stainless Steel |
| 11 | Body | 316 Stainless Steel |
| 12 | Flange | 316 Stainless Steel |
