Two Piece Shaft Wafer API6009 Butterfly Valve Concentric For Water Works

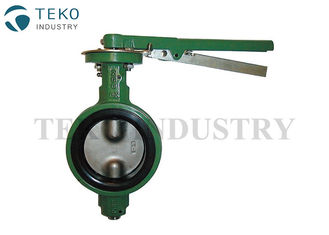

Large Image : Two Piece Shaft Wafer API6009 Butterfly Valve Concentric For Water Works

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D71X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Body Material:	ASTM A536 Ductil Iron	Design:	API 6009
Flange Standard:	ASME B16.5 150Lb, DIN PN10	Feature:	2 Piece Shaft
Seat Materail:	EPDM,NBR, PTFE, Etc	Service:	Water, Oil, Air Etc.
High Light:	Wafer API 6009 Butterfly Valve , Concentric API 6009 Butterfly Valve , Two Piece Shaft API 6009 Butterfly Valve

Two Piece Shaft Wafer End Concentric Design API609 Butterfly Valve For Water Works

Introduction

Wafer type butterfly valve, semi lug, with centric disc and bonded liner. 100% bi-directional bubble tight shut off. The 2 pieces shaft desgin provide advantages of easy operation and easy maintenances.

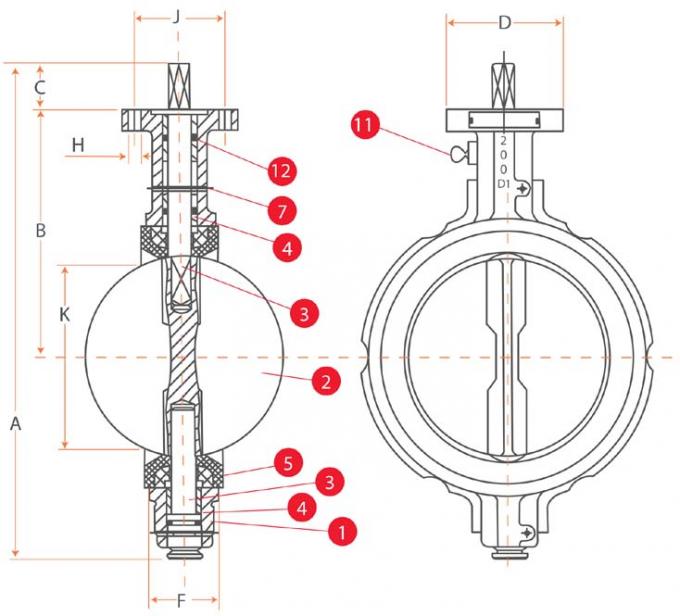

Material List

PART	DESCRIPTION	STANDARD MATERIAL
1	Body	ASTM A536 Ductile Iron
2	Disc	See Below
3	Shaft	ASTM A276 316SS
4	Bearings	Fiberglass Backed PTFE
5	Seat Assembly	Buna-N, EPDM or VITON (Phenolic Supported)
6	Set Screws (Not shown)	Plated Carbon Steel (Lug only)
7	Roll Pins	Plated Carbon Steel
8	Stop Plate (Not shown)	Plated Carbon Steel
9	Fasteners (Not shown)	Plated Carbon Steel
10	Handle Assembly	Ductile Iron
11	Lube Fitting	Plated Carbon Steel
12	O-Ring	Buna-N

Other materials are available upon request.

Component Design

Two Piece Shaft Wafer API6009 Butterfly Valve Concentric For Water Works 0

Mounting Pad: ISO5211 mounting pad for easy direct mounting of all types of actuators: handles, gear operators, electric and pneumatic.

Weather Seal: To bushing keeps dust and moisture from entering the upper shaft journal.

Bushings: Shaft bushing reduces torque and isolates the shaft from the valve body, preventing seizure of the shaft due to corrosion in the shaft journal.

Seat: Pnenoli-back seat with advantages of non-collapsible, stretch resistant, blow out proof and field replaceable Optional: rubber seat can be vulcanized to body

Shaft: Two pieces shaft allows the disc to float within the flow way, increasing the cycle life.
