Product Details:
Payment & Shipping Terms:
|
| Body Material: | Fabricated Steel | Structure: | Knife Shape |
|---|---|---|---|
| Standard Or Non Standard: | Non Standard | Port: | Square Shape |
| Media: | Water,coal Slurry,Gas | Pressure: | Low Pressure |
| High Light: | 8X8”Knife Gate Valve,Fabricated Steel Knife Gate Valve |
||

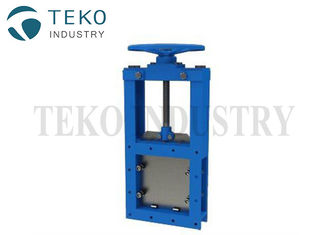

Rectangular Port Resilient Seat Low Pressure Rating Square Shape Knife Gate Valve
TEKO square knife gate valve are designed for lines with square and rectangular shapes. Rectangular port knife gate valve are mainly used for discharging bins and tanks. Under hoppers for the storage of solids products and for the highly charged fluids. The design of the valve improves the discharge and avoid the obstruction of the product.
Specifications: Square knife
| Size | 8”X8” to size 24” X 24” |
| Working Pressure | 14 psi to 35psi. |
| Seat | Metal Seat: High temperature, High density media Resilient: For low temperature |
| Material | Fabricated steel, Stainless Steel, Ect |
| Bonnet type | Bonnetless Bonneted |
Descriptions
BODY
Unidirectional fabricated type knife gate valve
Cast mono bloc design
Internal cast gate wedges and guides allow for tight shut off
Square port design for greater flow capacity and minimal pressure drop
KNIFE
Standard Stainless Steel/ Customer request
Polished knife on both sides for a greater seal between the packing and the seat.
Bottom of the gate wedge is machined to a bevel to shear off the solids during closing.
PACKING CHAMBER
Several lines of braided fiber plus an EPDM O-ring for long life, with an easy access packing gland ensuring a tight seal.
Long-life braided packing is available in different materials.
STEM
Rising & Non-rising stem available.
