Pneumatic Operated Butterfly Valve Dual Offset Spring Return

Large Image : Pneumatic Operated Butterfly Valve Dual Offset Spring Return

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, PED, API
Model Number:	D673H

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	40 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Operation:	Double Acting Pneuamtic, Spring Return Pneumatic	Body Configuration:	Wafer, Lug, Double Flange
Size Rating:	2" To 60"	Seat Material:	Laminated Disc Seal
Body Seat:	CoCr Alloy Deposited	Applications:	Industrial
High Light:	Pneumatic Operated Butterfly Valve , Dual Offset Spring Butterfly Valve , 60" Eccentric Butterfly Valve

Duel Offset Design Spring Return Pneumatic Operated Butterfly Valve

Sizes:	3" through 48" (80 through 1200 mm)
Ratings:	ASME CL150 – CL600
Connections:	Wafer, Lugged, Raised Face Flanged, RTJ Optional, EN Flange
Body Face to Face:	Wafer and lugged bodies API 609 Table-3 (A) (Category B Valves up to 24”) Double flanged short pattern: API609 table 3 (C) (Category B Valves up to 24”)
Body Materials:	Carbon steel WCC, Stainless steel CF8M, Low Temperature Carbon Steel LCC, Others on request Trim: Triple Offset
Seat Leakage:	Class IV (Standard) per IEC 60534-4 &ANSI/FCI 70-2 Class V & VI (Optional) per IEC 60534-4 &ANSI/FCI 70-2 Zero Leakage (API 598)
Inherent Characteristics:	Equal percentage
Actuator:	Spring-Diaphragm, Scotch Yoke Piston, Manual Gear, Others on request

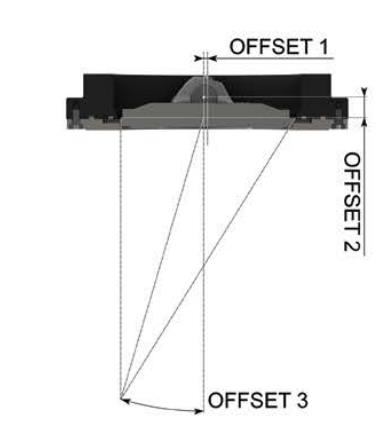

What is Triple offset design

1st eccentricity

The shaft is diverged from centerline of sealing surface.

2nd eccentricity:

The shaft is diverged from centerline of the pipeline and valve. These two eccentricities are designed for friction reduction between the valve seat and seal ring when opening and closing the valve.

3rd eccentricity

It makes the valve set completely separated from the seal ring through the geometric shape, during the whole process of opening and closing the valve. The special eccentric combination not only makes use of the cam effect, but also completely eliminates friction. It enables no friction between the valve seat and seal ring on the valve plate, to eliminate possible abrasion and leakage, in the 90°stroke of the valve.

Design Feature

Medium can flow through the body directly for little resistance and high flow capacity.
The body and upper cover could be made of carbon steel,austenitic stainless steel or special alloy material.
The sulfur-free flexible v-graphite is heat resisting,we shall ensure the service life of packing is long-term without maintenance by increasing pre-pressure on spring gasket.
The self-sealing packing structure is tested 100,000 times (full travel) to ensure zero leakage and constant friction.When the stem moves at low friction state,we can get the long-term steady precision of control valve .
The seat adopts multi-level structure, the sealing surface is composed of metal and special non-metal materials to ensure zero leakage.
The shaft center deviates from the valve center bi-directionally. The asymmetric design sealing surface allows the disc to revolve in 0-90° freely.
Triple offset with metal seat design.

Applications:

High performance applications such as steam, chilled water, gasoline, oil, jet fuels, natural gas, utility lines, process lines and in industries such as:

• Power Generation

• Oil and Gas

• Refineries

• Chemical and Petrochemical

• Steel and Mining

• Pulp and Paper

• Food and Beverage
