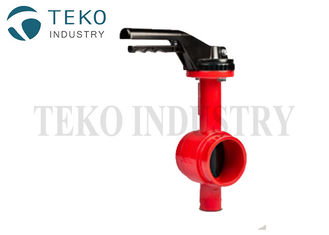

Bi - Directional Seal Fire Safe 2" 12" Grooved Butterfly Valve

Large Image : Bi - Directional Seal Fire Safe 2" 12" Grooved Butterfly Valve

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D81X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Design:	API 609	Installation:	Quick Adaptor
Operation:	Manual	Face To Face:	API 609
Feature:	Rubber Volcanized Disc	Test:	API 598
Seat:	EPDM, NBR
High Light:	12" Grooved Butterfly Valve , API 598 Grooved Butterfly Valve , NBR API609 Butterfly Valve

Fast Installation Bi-directional Seal Fire Safe Grooved Butterfly Valve 2”-12”

Butterfly valve with grooved end (working pressure 300 psi). Profit GBV butterfly valves feature a ductile iron (ASTM A 536) body with an EPDM rubber seat and stainless steel upper and lower stem

Rating

DN.50mm (2”) – 300mm (12”)
PN 10, 16
Materials
Body: Ductile iron, epoxy/ resin internally and externally coated
Disc: CF-8M/ GJS500.7 vulcanized
Sealing: EPDM/ NBR
Shaft: AISI 420

Design features

· The grooved coupling system provides secure, simple and fast connection

· Neither welding nor adapter flange are required

· Grooved butterfly valve is suitable for water and particularly for fire protection systems

· The EPDM vulcanized disc provides perfect sealing and low operating torque

· Is the lightest pipe to valve connection solution

· Fast and easy mounting or dismounting

· Possible adaptation on every type of pipe

· A perfect alignment of the valve and pipe is not required in the assembly; some flexibility is allowed

· Low pressure drop thanks to the aerodynamic disc

· Bi-directional sealing

Applications

Construction	Irrigation	Food industry	Paper mills
Steel industry	Chemical and petrochemical	Mining	Process industry
Sugar mills	Cement industry	Power generation	Shipbuilding and offshore
