Product Details:
Payment & Shipping Terms:
|
| Features: | No Groove In Cavity | End Connection: | Lug Type |
|---|---|---|---|
| Seal Tyouble Seatedpe: | Uni-directional | Port Size: | DN50-DN600 |
| Seat Material: | EPDM,PTFE | Body Material: | Ductile Iron, WCB, Stainless Steel |
| High Light: | EPDM Lug Knife Gate Valve,DN600 Knife Gate Valve |
||

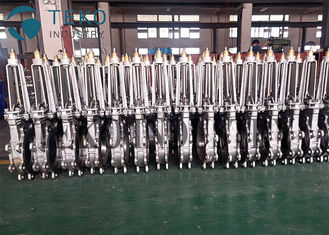

Stainless Steel Lug Type Uni-directional Seal Knife Gate Valve
TEKO high performance shut-off valve with superior flow characteristics, offering bi-directional zero leakage shut-off up to 150 psi/10 bar. It is suitable for media such as pulp stock, chemicals, sludge, bio mass, slurry and water. The fully lugged body design is suitable for dead-end services.
Technical Data
| Nominal diameter: | DN 80 - DN 600 |
Face-to-face: |
MSS-SP81 |
Flange accommodation: |
ASME/ANSI B 16.5 Class 150 AS 2129 Tabel D and E |
Tightness check: |
EN 12266-1:2009 Rate A |
Temperature range: |
max. 120 °C |
Actuator: |
Hand wheel, chain wheel, pneumatic cylinder, electric motor, hydraulic cylinder |
Max. Operating pressure: |
DN 80 - DN 300, 10 bar DN 350 - DN 450, 6 bar or 10 bar DN 500 - DN 600, 4 bar or 10 bar |
Features:
· Sharp heavy-duty knife edge at the bottom of gate cuts through solid sediments and ensures reliable shut-off
· Gate offered with surface coatings based on customer demand - Hardfacing, Nitriding,
Chrome-plating
· Replaceable seats - Easy maintenance at site. Longer service life.
· Low operating torque - Facilitates use of a smaller-size actuators. Lower Initial Investment.
