DN600 API 598 Single Door PN10-40 Water Check Valve

DN600 API 598 Single Door PN10-40 Water Check Valve
DN600 API 598 Single Door PN10-40 Water Check Valve

Large Image :  DN600 API 598 Single Door PN10-40 Water Check Valve

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H74X
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Trim Material: Metal Seat, Soft Seat Feature: Non-slam
Port Size: 2"-20" Working Theory: SIngle Door
Design Standard: API 594 Installation: Horizontal Or Vertical (Upstream)
High Light:

API 598 Water Check Valve

,

DN600 Water Check Valve

Stainless Steel Wafer Type Short Pattern Single Door Water Check Valve



Standard Features:



· Investment Casting Body

· Flange Standard:DIN PN10-40

· Viton Sealing and Metal Sealing Available

· Material:CF8M/CF8/SS316/SS304/1.4408/1.4301

· Max working temperature: 400 ℃

· Working Medium:Water,Oil,Gas ect.

· Inspection&Testing:API 598





Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C

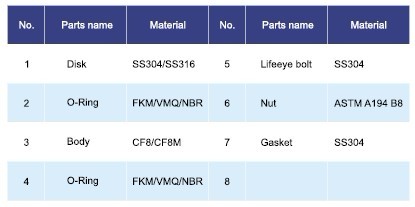

Main Material



DN600 API 598 Single Door PN10-40 Water Check Valve 0

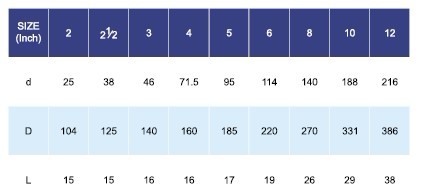

Dimensions

DN600 API 598 Single Door PN10-40 Water Check Valve 1



Tag:

wafer type check valve,

wafer swing check valve,

single disc wafer check valve
