Low Friction Regulating API609 Butterfly Valve Corrosion Resistant

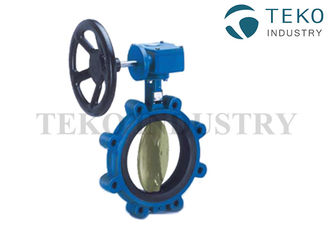

Large Image : Low Friction Regulating API609 Butterfly Valve Corrosion Resistant

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D371X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Manufacture:	API 609	Installation:	Any Direction
Operation:	Manual	Face To Face:	API 609 Catagory A
Feature:	Exchangeable Seat	Port Size:	Standard,DN50-DN300
Seat:	EPDM, NBR
High Light:	rubber seated butterfly valve , centerline butterfly valves

Exchangeable Soft Seated Low Friction Regulating Butterfly Valve

Description

Center Lined Soft Seated Butterfly Valve are reliable, maintenance-free shutoff and control valves with permanently gas-tight seals. This resilient seated valve has proved itself as a leak-free and corrosion resistant valve in various applications under demanding operating conditions.

Features & Benefits

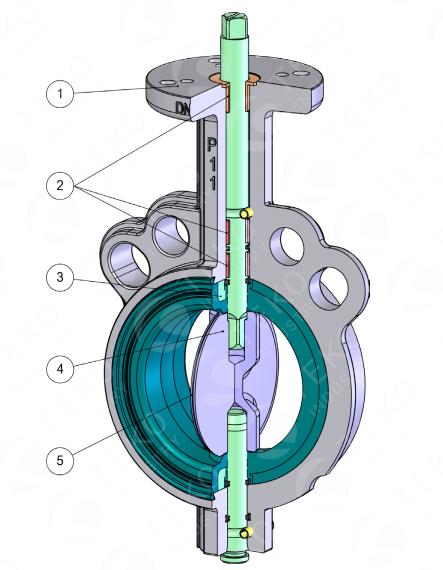

SOFT SEATED BUTTERFLY VALVE
1	EN ISO 5211 top mounting	Easy coupling with every king of drives.
2	Three guiding bushings on the shaft	It grants a perfect alignment of the shaft on the body and prevents oscillation even with high pressure
		Less friction between the shaft and body.
3	Vulcanized liner on rigid ring	Less deformation of the liner
		Easy assembly/disassembly of the liner of maintenance
		No deformation of the liner between the flanges during assembly.
		Greater dimensional accuracy during the injection/molding.
4	Shaft in 2 pieces without fixing components	Easy assembly/ disassembly of the disc for maintenance
		Higher Kv thanks to the central section of the disk thinner than a valve with a single shaft
5	Lapped surface of the disc’s circumference	Better tightness and less wear of the liner
		Lower torque due to less friction between the disc and liner.

Features:

Face to face as per EN 558 series 20
Integral sealing which avoids any contact between fluid and valve body
Sealing design allowing perfect adherence to the valve body and perfect tightness to the flanges, without additional parts, clamping between flanges does not influence the torque of the valve.
Lapped disc edges that allows better tightness, reduced torque and low wear of the liner
Bushes to support the shaft.
Valve neck with top work as per EN ISO 5211 for easy connections with all different types of actuators.
All components properly treated against corrosion
