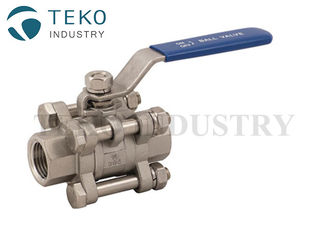

800Lb Socket Weld End Ball Valve Stainless Steel For Oil Gas Low Operating Torque

Large Image : 800Lb Socket Weld End Ball Valve Stainless Steel For Oil Gas Low Operating Torque

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q11F

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Driven By:	Worm Gear, Pneumatic	Structure:	Trunnion Ball
Body Material:	WCB, A105, F51	Bore:	Regular Bore
Seat Material:	RPTFE, Develon, SS,STL	Working Temperature:	-25℃~540℃
Material:	A105， F304, F316
High Light:	flanged end ball valve , v port ball valve

Forged Steel Stainless Steel 800Lb Socket Weld End Ball Valve For Oil Gas

Two way floating ball three piece forged steel valve is available as regular board in ASME Class 800Lb, 1500Lb, Screwed or threaded end connection in size range of 15mm to 50mm in ATM A 105(Forged carbon steel), ASTM A182 F304(forged stainless steel304), A182 F316(Forged Stainless steel ) and other material.

Features

Quality forged body ball valve

Stronger heavy duty rugged contruction

Longer Smooth life

Low operating torque

Positive shut off

No lubrication

Design & Testing Standard

Design Standard	BS EN ISO 17292, BS5351/ BS EN ISO 12516/BS EN 1983
Inspection & Testing Standard	BS EN ISO 1266-1 (BS 6755-1)
Flange to flange distance	As per ANSI B1.10 / tailor made on requests
End connection	Screwed / Threaded end to ANSI B 1.20.1 Socketed weld to ANSI B16..11 Butt weld end to ANSI B16.25
Size	DN15 to DN50
Rating	800Lb, 1500Lb
Valve Operation	Manual Hand lever
