Full Bore Forged Steel High Pressure 3 PC Ball Valve With BW End Pneumatic Driven

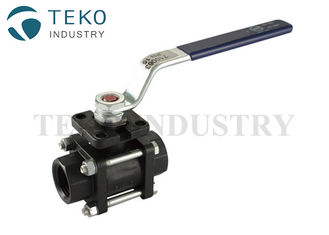

Large Image : Full Bore Forged Steel High Pressure 3 PC Ball Valve With BW End Pneumatic Driven

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q61F

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Driven By:	Worm Gear, Pneumatic	Structure:	Trunnion Ball
Body Material:	WCB, A105, F51	Bore:	Full Bore
Seat Material:	RPTFE, Develon, SS,STL	Working Temperature:	-25℃~540℃
Material:	A105， F304, F316
High Light:	flanged end ball valve , v port ball valve

Full Ball Forged Steel High Pressure 3 PC Ball Valve With BW End

Quick Info

1. Forged Steel A105 ball valve, A105 ball valve, 3pc Socket Welded ball valve, ball valve 800lb, Forged Steel ball valve, 3pc SW ball valve a105, 3pc SW ball valve 800lb

2. Size: 1/2"-4"

3. Pressure: pn16, pn25

4. connection: thread

5. Medai: water, gas, oil

6. Temperature: -29-150centigrade

7. Operation: handle

Port Size	Full Bore, 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" DN15 , DN20 , DN25 , DN32 , DN40 , DN50 , DN65 , DN80
Media	Oil, Acid, Gas, Water, Chemical, Petrochemical, Pulp, LPG, CNG
Tempurature of Media	-20 to 250 degrees Celsius
Material	Carbon steel or Stainless Steel or Special Alloy Steel (such as Alloy 20, 904L, Hastelloy, Inconel, Monel, Titanium, Duplex/Super Duplex Stainless Steel)
Connection	NPT / BSP / PT / PF / BSPT
Power	Manual
Pressure	3000psi , 4000psi , 5000psi , 6000psi

Applicable Standard

Design Standard	GB/T12224, GB/T8464
Pressure-Temperature Rating	GB/T1224
Face to face standard	GB/T15188.3
End connection Std	G, Rc, Rp, NTP, BSP, BSPT, DIN 259/13927
Test Standard	GB/T13927
