Standard Pressure Knife Valve Soft Seated GG25 Body Semi Lug End

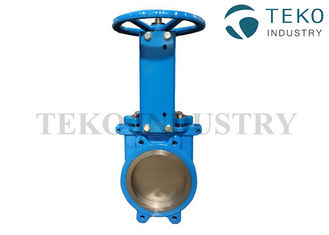

Large Image : Standard Pressure Knife Valve Soft Seated GG25 Body Semi Lug End

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	PZ73X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	350 tons per year

Contact Now

Detailed Product Description

Features:	No Groove In Cavity	End Connection:	Wafer, Semi Lug
Seal Tyouble Seatedpe:	Bi-directional	Port Size:	2"-24"
Seat Material:	EPDM,NBR	Body Material:	Ductile Iron, WCB, Stainless Steel
High Light:	pneumatic knife valve , cast steel valves

Soft Seated GG25 body Semi Lug End Standard Pressure Bi-directional Knife Valve

Features

Bi-directional Wafer Design knife gate valve
One piece cast body
Provides high flow rates with low pressure drop
Various seat and packing materials available
Face-to-face dimension in accordance with MSS Standard
Stainless Steel Gate, two rubber sleeves
No groove on the flow passage for slurry build-up

End connection

PN10 standard; other options available: BS “D” and “E”, ANSI 150Lb, ec

Quality Assurance
All valves are tested hydrostatically at TEKO and material and test certification can be provide.

Main Parts

Main Parts	Material
Body	GJS-500
Gate	ANSI 304
Packing Gland	Steel
Packing seal	Natural Rubber
Packing	Graphite
Lower cover	Steel
Sleeve	Natural Rubber
Support plates	Steel
Stem	AISI303
Yoke	GJS-500
Stem Nut	Bronze
Handwheel	GJS-500
Stop Nut	Steel
Hood nut	Zinc
Hood	Steel
Protec. Cap	Plastic
Greaser(Option)	Steel
