Product Details:
Payment & Shipping Terms:
|
| Material: | GJL-250, CF8M | Liner: | EPDM, NBR, PTFE Etc |
|---|---|---|---|
| Zero Leakage: | Class IV | Drill Standard: | ANSI DIN |
| Actuato: | Single Acting Pneumatic | Application: | Sewage, Paper Pulp, Slurry |
| High Light: | pneumatic knife valve,cast steel valves |
||

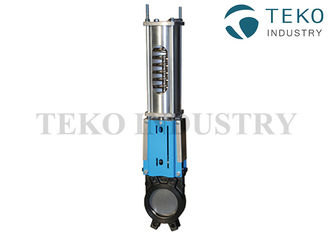

MSS-SP DIN Standard Single Acting Pneumatic Uni-directional Seal Wafer End Knife Valve
Description
One-piece cast body with guides to support gate and seat wedges. Provides high flow rates with low pressure drop. Various seat and packing materials available. Face to face dimension in accordance with MSS-SP-81 standard. And arrow is marked on the body indicating the flow direction.
General Applications
The TEKO knife gate valve is used for liquids that contain a maximum of 5% suspended solids. If it is used for dry solids in gravity feed applications, it should be installed with the arrow on the body pointing in the opposite direction to the flow.
| Building Materials | Corn Processing | Paper Recycling | Steel/Wire/Cable |
| Bulk Processing | Mining and Dredging | Fly Ash and Coal | Sugar Processing |
| Cement Production | OEM Hoppers | Scrubbers | Industrial Waste |
Max. Working Pressure
| Size | Pressure |
| DN50-DN250 | 10 kg/cm2 |
| DN300-DN450 | 7 kg/cm2 |
| DN500-DN600 | 4 kg/cm2 |
| DN700-DN900 | 2 kg/cm2 |
| DN1000-DN1200 | 1 kg/cm2 |
The mentioned working pressures are just valid for the pressures applied on the direction of arrow marked on the body. As the valve is designed with gate support guides, the valves are able to support a 30% of these pressures from the opposite direction without any damage on them. In these cases, the valves are not 100% water tight. To obtain total water tightness in these conditions, it is necessary to incorporate additional supports.
Advantage of TEKO uni-directional seal
