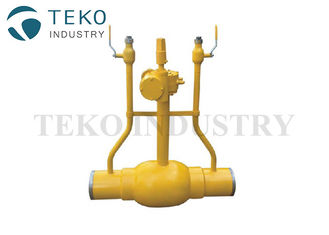

Trunnion Ball Fully Welded Flanged End Ball Valve Underground Installation

Large Image : Trunnion Ball Fully Welded Flanged End Ball Valve Underground Installation

Product Details:

Place of Origin:	China
Brand Name:	TEKO
Certification:	CE Certificate
Model Number:	QA61F

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	By Negotiation
Packaging Details:	By wooden cases
Delivery Time:	35 days after deposit
Payment Terms:	L/C
Supply Ability:	100 tons per month

Contact Now

Detailed Product Description

Material:	A105, F316	End:	Weld End
Pressure Rating:	150LB-900Lb	Operation:	Manual Or Worm Gear
Seat Materail:	PTFE	Design:	Fully Weld
High Light:	flanged end ball valve , v port ball valve

Full-Welded Trunnion Ball Welded End Underground Installation Fully Welded Ball Valve

Advantage:

1) Good environmental suitability.
(2) Excellent chemical resistance , long service life.
(3) The inside pipe wall is extremely smooth and difficult to leave over dirt.
(4) Connected by welding , leakage prohibit

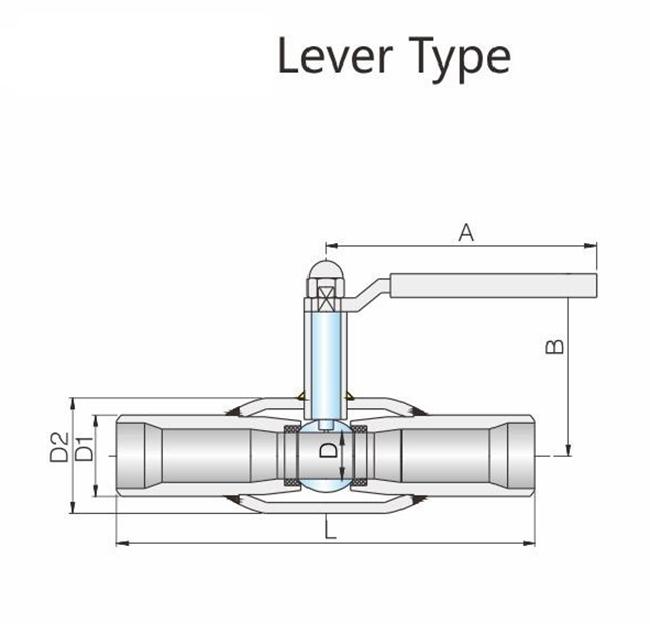

Trunnion Ball Fully Welded Flanged End Ball Valve Underground Installation 0

unit:millimetre(mm)
Size	NPS	A	b	L	D	D1		D2
Size	NPS	A	b	L	D	CN	EU	D2
DN15	3/8	129	64	210	15	18	21.3	42
DN20	3/4	129	64	230	15	25	26.7	42
DN25	1	159	76	230	20	32	33.4	48
DN32	1-1/4	159	85	260	25	42	42.2	60
DN40	1-1/2	230	95	300	32	48	48.3	76
DN50	2	230	100	300	40	57	60.3	89
DN65	2-1/2	300	159	300	50	76	76.1	114
DN80	3	300	170	300	65	89	88.9	140
DN100	4	450	192	325	80	108	114.3	185
DN125	5	450	208	325	100	133	141.3	216
DN150	6	450	241	350	125	159	168.3	219

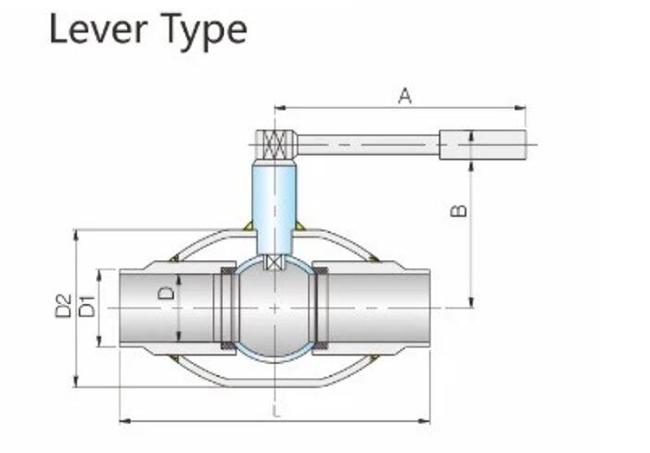

Trunnion Ball Fully Welded Flanged End Ball Valve Underground Installation 1

unit:millimeter(mm)
Size	NPS	A	b	L	D	D1		D2
Size	NPS	A	b	L	D	CN	EU	D2
DN15	3/8	129	90	210	15	18	21.3	42.7
DN20	3/4	159	103	230	20	25	26.7	48
DN25	1	159	107	260	25	32	33.4	60
DN32	1-1/4	230	120	260	32	42	42.2	76
DN40	1-1/2	230	126	300	40	48	48.3	89
DN50	2	300	177	300	50	57	60.3	114
DN65	2-1/2	300	186	300	65	76	76.1	140
DN80	3	400	210	300	80	89	88.9	165
DN100	4	400	214	325	100	108	114.3	216
DN125	5	450	220	350	125	133	141.3	219
DN150	6	450	280	490	150	159	168.3	355

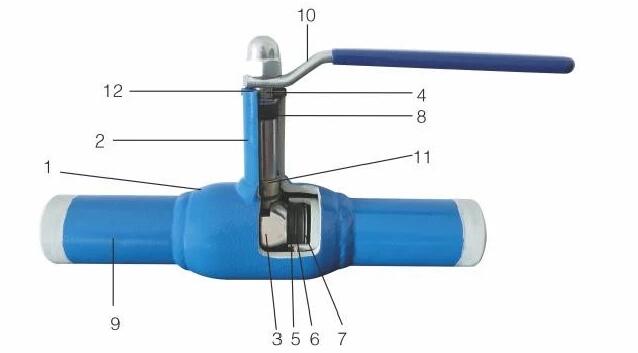

Trunnion Ball Fully Welded Flanged End Ball Valve Underground Installation 2

No.	Part name	Material
1	Body	Carbon steel St37.8
2	Neck	PTFE+SPCB
3	Ball	304 stainless steel
4	Stem	2Cr13
5	Seat	25%C+PTFE
6	Metal washer	60Si2Mn
7	Spring	60Si2Mn
8	"O" Ring	FPM
9	End piece	Carbon steel St37.8
10	Handle	Carbon steel +HCr
11	"O" Ring	FPM
12	Gland	304 stainless steel
