Bi - Directional Seal NR Elastomer Seat Demanding Knife Valve For Slurry Zero Leakage

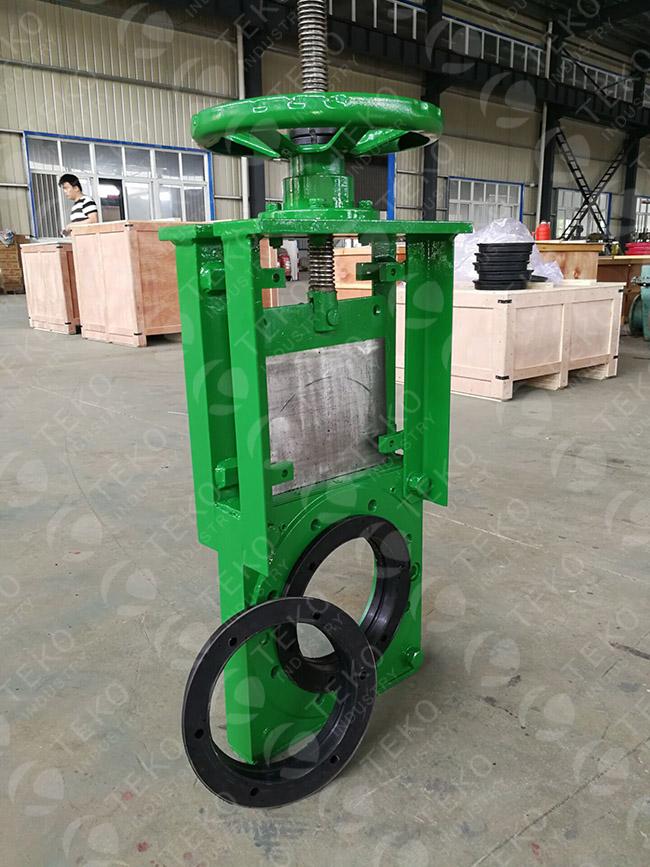

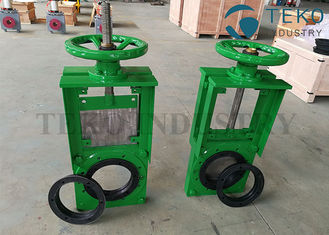

Large Image : Bi - Directional Seal NR Elastomer Seat Demanding Knife Valve For Slurry Zero Leakage

Product Details:

Place of Origin:	Made In China
Brand Name:	TEKO
Certification:	CE Certificate
Model Number:	PZ73X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	By Negotiation
Packaging Details:	By polywooden cases
Delivery Time:	15 days after deposite
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 tons per month

Contact Now

Detailed Product Description

Material:	Ductile Iron, Stainless Steel	Seat:	NR, Rubber
Zero Leakage:	Yes	Drill Standard:	ANSI DIN
Function:	Abrasion, Slurry	Operation:	Manual, Pneumatic,Bevel Gear
High Light:	pneumatic knife valve , cast steel valves

Bi-directional Seal NR Elastomer Seat Demanding Slurry Knife Valve For Slurry Applications

Specifications & Standards

Size Range	DN50~600mm	Design	Mill Standard
Pressure rating	150 psi(10 bar)	Face to face	MSS-SP-81
Body Style	Two-piece bolted	Drilling	ASME B16.5 CL150

Introduction

Our TEKO slurry valve is bi-directional slurry valve, designed for demanding slurry applications. Twin elastomer seats and push-through gate design facilitate self-cleaning and prevent media build up.

The durable ductile iron body is offered in a compact wafer style. When fully open, the valve bore offers no resistance to line media.

Why TEKO slurry knife valve?

Easy & quick conversion between manual and pneumatic actuation
Secondary wiper seal extended gate life and prevent discharge from top of valve
Metal-reinforced, elastomer sleeves provide energized, zero leakage shutoff in both directions.
Robust gate available in a wide range of corrosion resistant alloys to suit the applications.
Ample clearance for push-through allows complete gate closure.

Applications

Minerals & Mining	Cement and fiber Cement	Fossil and biofuels	Water and Waste water
Fertilizers	Pulp and Paper	Pigment and fillers	Sand Service

Bi - Directional Seal NR Elastomer Seat Demanding Knife Valve For Slurry Zero Leakage 0
