Flanged End Two Way Jacketed Ball Valve Soft Seated Metal Seated For Bitumen

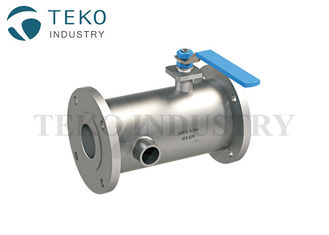

Large Image : Flanged End Two Way Jacketed Ball Valve Soft Seated Metal Seated For Bitumen

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	BQ41Y

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Driven By:	Manual, Penumatic, Electric As Requested	Body Material:	WCB, Stainless Steel
Circulation Fluid:	Hot Steam Or Thermal Oil	Seat Material:	Stellite Coating, Nutride Coating
Ball Material:	Nutriding	End:	Drilled As Per ANSI DIN, JIS Standard
High Light:	flanged end ball valve , v port ball valve

Flanged End Two Way Jacketed Ball Valve Soft Seated Metal Seated For Bitumen Application

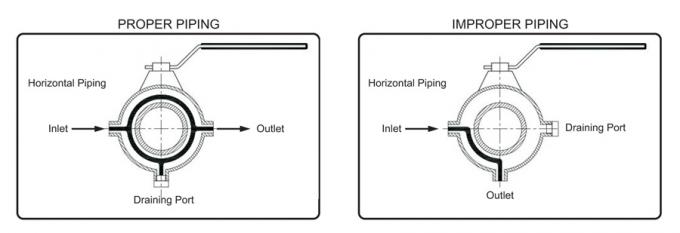

PIPING

When piping the TEKO jacketed ball valves, check that no foreign objects will block the inlet, outlet or draining port. Proper piping enables the steam to flow more effectively to warm the jacketed area.

Flanged End Two Way Jacketed Ball Valve Soft Seated Metal Seated For Bitumen 0

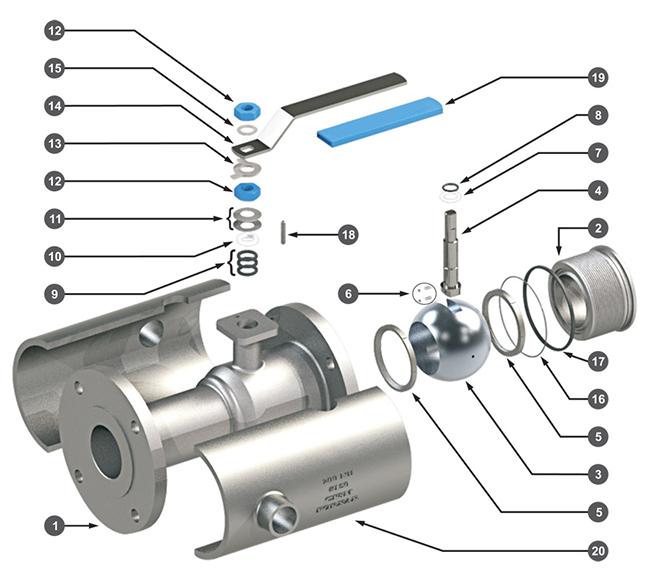

Component Name & Quality

Flanged End Two Way Jacketed Ball Valve Soft Seated Metal Seated For Bitumen 1

No	Component Name	Qty.
1	Body	1
2	Adaptor	1
3	Ball	1
4	Stem	1
5	Seat Ring	2
6	Anti-Static Device	2
7	Stem Bottom Bush	1
8	Stem “O” Ring	1
9	Gland Packing	3
10	Gland Bush	1
11	Spring Washer	2
12	Gland Nut	2
13	Lever Stopper	1
14	Lever	1
15	Indicator or Washer” Ring	1
16	End Piece “O” Ring	1
17	Gasket	1
18	Stopper Pin	1
19	Lever Grip	1
20	Jacketed	1
