API 609 Double Flanged Type Soft Seat Butterfly Valve For Shu - Offf And Throttling

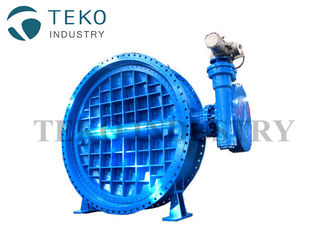

Large Image : API 609 Double Flanged Type Soft Seat Butterfly Valve For Shu - Offf And Throttling

Product Details:

Place of Origin:	Made In China
Brand Name:	TEKO
Certification:	CE, API609
Model Number:	D372X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	By negotiation
Packaging Details:	By wooden cases or per customer requirements
Delivery Time:	30-35 days after deposit
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 tons per month

Contact Now

Detailed Product Description

Size:	2“-60"	Design:	Double Eccentric
Body Material:	Ductile Iron, Stainless Steel	Shaft Material:	SS410
Packing:	By Wooden Cases	Pressure:	Low Pressure
High Light:	triple offset butterfly valve , double eccentric butterfly valve

API 609 Double Flanged Type Soft Seated Butterfly Valves For Shu-offf And Throttling Applications

Technical Data

Nominal diameter	DN2200 – DN3200 (mm) 88’’ – 128’’ (inch)
Nominal pressure	PN2.5/PN6/PN10/PN16
Standards	Design: BS EN593 / GB/T12238 Face to face: BS EN558 / GB/T12221 Flange end: BS EN1092-2 / GB/T9113 / GB/T 17241.6 Pressure test: BS EN12266 / GB/T 13927
Material	Body: Cast iron – HT200, HT250 Ductile iron – QT450-10, QT500-7 / GGG40, GGG50 Carbon steel – WCB, WCC, LCB Stainless steel – CF3, CF8, CF3M, CF8M Disc: QT450-10, QT500-7, WCB, WCC, LCB, CF8, CF3, CF8M, CF3M Stem: SS410, SS420, SS304, SS316 Sealing ring: NBR, EPDM, PTFE, RPTFE, VITON
Drive	Manual/Worm gear/Electric/Pneumatic
Connection ends	Double flanged
Applications	Fresh water / Sea water / Salts water Steam / Gas / Air Alkali / acid / oil
Working Temperature	From -20℃ to +220℃
Types of seat	A. Seat on the body B. Seat on the disc C.T-shaped seat
Outstanding Characteristics	Oil proof / Anti-aging / Anti-Corrosion / Wear-resisting
Design features	1. Bidirectional sealing. 2. Zero leakage 3. Good flow regulating function and sealing performance. 4. Different seat designs satisfy various service conditions 5. The disc can move away from the seat fast and prolong the valve life. 6. Simple in structure, and convenient in mounting, dismounting and change.

Features

The TEKO double eccentric butterfly valve is mainly designed for water or air at industry of food, pharmacy, petroleum, power plant, textile, pulp & paper and so on. It can be used for both shut-off and throttling applications.

Improved design, provide quick action and light weight.
Low torque, easy to operation.
Can be installed at any positions.
Replaceable seal ring, lower the ownership cost.
Different seal material available upon customer’s request.

Installation

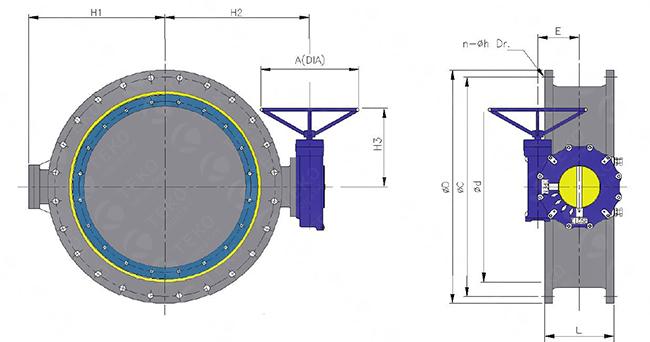

API 609 Double Flanged Type Soft Seat Butterfly Valve For Shu - Offf And Throttling 0

Nominal Pipe Size		Outside Dia.	L	No. of Bolt Holes	Bolt Hole Dia.	Dia.of Bolt Circle	H1	H2	H3	E	A
inch	d, mm	D	L	n	h	C	H1	H2	H3	E	A
8	200	343	153	8	22	298.5	190	360	240	62	300
10	250	406	203	12	25	362	220	385	240	62	300
12	300	483	203	12	25	431.8	250	425	280	75	400
14	350	533	203	12	29	476.3	280	460	280	75	400
16	400	597	203	16	29	539.8	330	520	315	92	500
18	450	635	203	16	32	578	350	570	315	92	500
20	500	699	203	20	32	635	390	650	360	113	560
